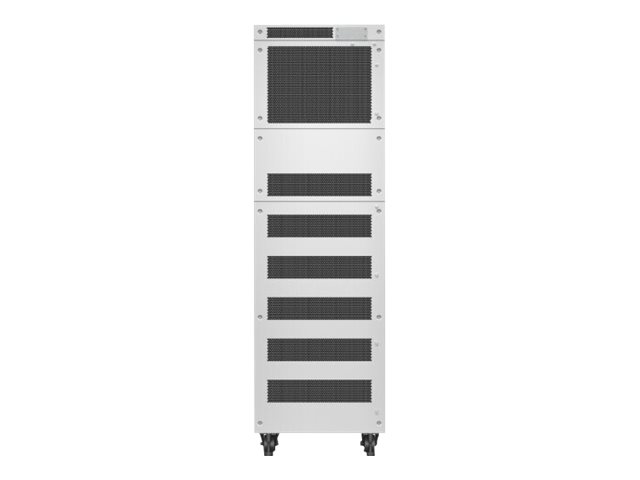

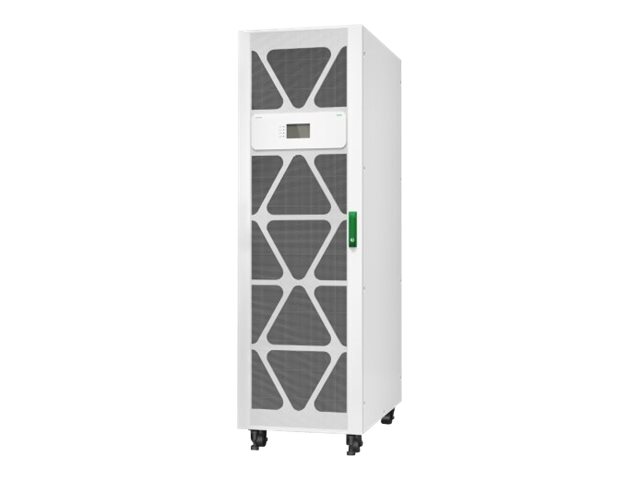

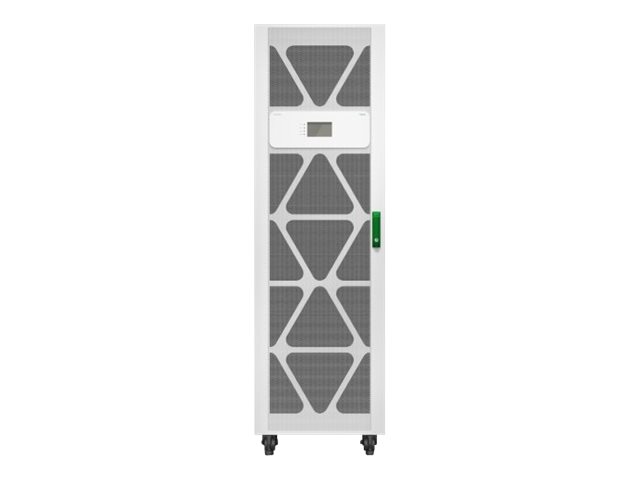

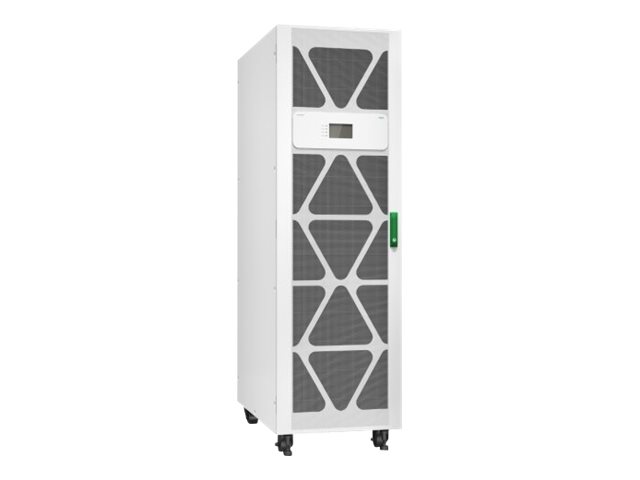

Schneider Electric Easy UPS 3M E3MUPS80KHB2S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Schneider Electric Easy UPS 3M E3MUPS80KHB2S
- UPS
- AC 380/400/415 V
- 80000 Watt
- 80000 VA
- 3-phase
- white
- with Start-Up Service 5X8
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E3MUPS80KHB2S |
| SHI Part #: | 39539858 |
| Category: | Power conditioning equipment |
| UNSPSC: | 39121000 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power conditioning equipment |
| Description | Schneider Electric Easy UPS 3M E3MUPS80KHB2S - UPS - AC 380/400/415 V - 80000 Watt - 80000 VA - 3-phase - white - with Start-Up Service 5X8 |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 39121000 |
| Main Specifications | |
| Dimensions & Weight / Depth | 100 cm |
| Dimensions & Weight / Height | 197 cm |
| Dimensions & Weight / Weight | 339 kg |
| Dimensions & Weight / Width | 60 cm |
| General / Subcategory | UPS |
| Header / Brand | Schneider |
| Miscellaneous / Product Color | White |
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Power Capacity (VA) | 80000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 380/400/415 V |
| Product Type | UPS |
| Service & Support / Type | 1-year warranty |
| Battery | |
| Technology | Lead acid |
| Voltage Provided | 240 V |
| Dimensions & Weight | |
| Depth | 100 cm |
| Height | 197 cm |
| Weight | 339 kg |
| Width | 60 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 112.5 cm |
| Shipping Height | 210.2 cm |
| Shipping Weight | 387 kg |
| Shipping Width | 75 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 65 dB |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Interfaces |
|
| General | |
| Bundled Services | Start-Up Service 5X8 |
| Color | White |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year - on-site |
| Miscellaneous | |
| Compliant Standards | IP20, IEC 62040-2, IEC 62040-3, IEC 62040-4, EN 62040-1, IEC 62040-1 |
| Features | Built-in static bypass, Eco-Mode, LCD display |
| Included Accessories | Dust filter |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x hardwire 5-wire (3PH + N + G) |
| Input Voltage | AC 380/400/415 V |
| Input Voltage Range | AC 342 - 477 V |
| Input Wiring | 3-phase |
| Max Electric Current | 146 A |
| Output Voltage | AC 380/400/415 V ± 3% - 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 80000 Watt / 80000 VA |
| UPS Technology | On-line |
