Geist Basic Standard DU00X5B1-48CF17-2S02A9K00-S-A
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

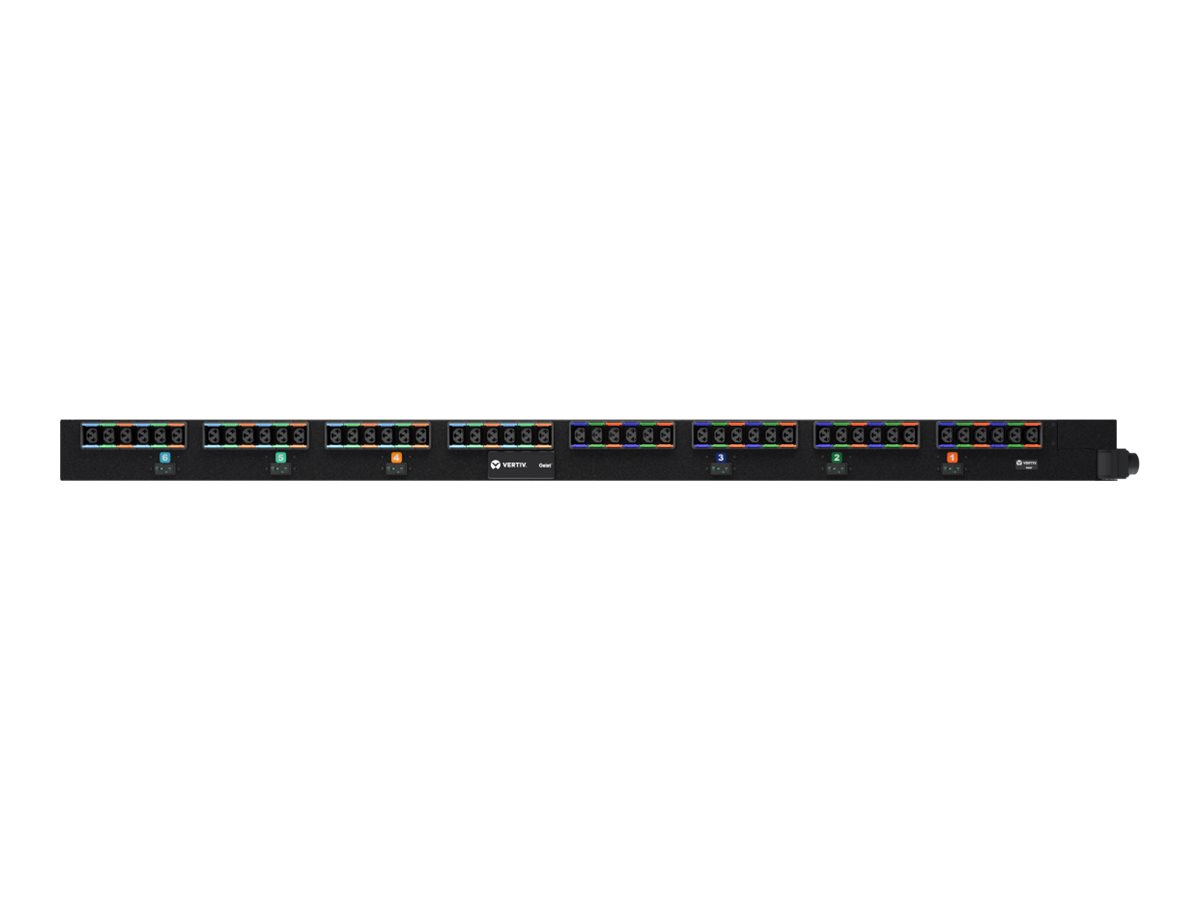

Geist Basic Standard DU00X5B1-48CF17-2S02A9K00-S-A
- Power distribution unit (rack-mountable)
- AC 240/415 V
- 22 kW
- output connectors: 48 (48 x IEC 60320 C13/C19)
- 0U
- black powder coat
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | U1079 |
| SHI Part #: | 39536609 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Geist Basic Standard DU00X5B1-48CF17-2S02A9K00-S-A - Power distribution unit (rack-mountable) - AC 240/415 V - 22 kW - output connectors: 48 (48 x IEC 60320 C13/C19) - 0U - black powder coat |
| Manufacturer | Vertiv |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.7 cm |
| Dimensions & Weight / Height | 168.3 cm |
| Dimensions & Weight / Width | 9.7 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 48 |
| Power Device / Voltage Required | AC 240/415 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 5.7 cm |
| Height | 168.3 cm |
| Width | 9.7 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 11.34 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| General | |
| Color | Black powder coat |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included | Power cable 3.05 m |
| Compliant Standards | UL 60950, RoHS |
| Features | Vertical orientation, vertical orientation |
| Rack Mounting Kit | Included |
| Power Device | |
| Circuit Protection | Circuit breaker |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 |
| Input Voltage | AC 240/415 V |
| Max Electric Current | 63 A |
| Output Voltage | 240 V 50/60 Hz |
| Power Capacity | 22 kW |
| Power Output Connectors Details | 48 x power IEC 60320 C13/C19 |
