Elo 1302L - With Stand
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

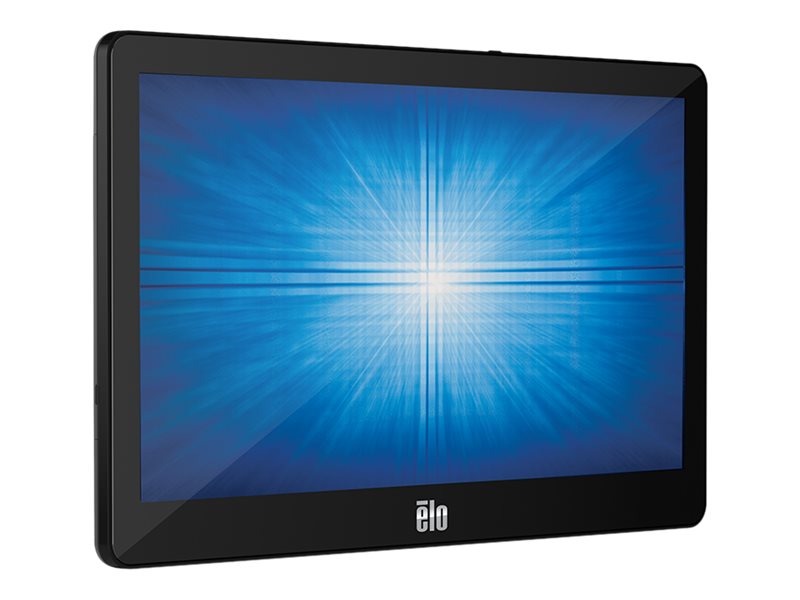

Elo 1302L - With Stand
- LCD monitor
- 13.3"
- touchscreen
- 1920 x 1080 Full HD (1080p) @ 60 Hz
- 300 cd/m²
- 800:1
- 25 ms
- HDMI, VGA, USB-C
- speakers
- white
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | E683396 |
| SHI Part #: | 38298281 |
| Category: | Monitors |
| UNSPSC: | 43211901 |
| Manufacturer: | Elo Touch Solutions |
| Product Type: | Hardware |
Barcode Readers/Scanners
- black
- for Elo 1002, 1902, 2002, 2202, 2402, 2702, 5502; Interactive Digital Signage Display 4602
- black
- for Elo 1002, 1902, 2002, 2202, 2402, 2702, 5502; Interactive Digital Signage Display 4602
- EMV terminal cradle
- black
- for Elo 1002, 1902, 2002, 2202, 2402, 2702; I-Series ESY15, ESY22; I-Series 2.0; Ingenico ICMP
| General Information | |
|---|---|
| Category | Monitors |
| Description | Elo 1302L - With Stand - LCD monitor - 13.3" - touchscreen - 1920 x 1080 Full HD (1080p) @ 60 Hz - 300 cd/m² - 800:1 - 25 ms - HDMI, VGA, USB-C - speakers - white |
| Manufacturer | Elo Touch Solutions |
| UNSPSC | 43211901 |
| Main Specifications | |
| C.P.U. | PT-TS |
| Dimensions & Weight / Weight | 010.19 |
| Height | 0.00 |
| Length | 0.00 |
| UPC | 0843173109381 |
| Width | 0.00 |
| Audio | |
| Output Power / Channel | 2 Watt |
| Type | Speakers - stereo |
| Connectivity | |
| Interfaces |
|
| Dimensions & Weight | |
| Dimensions & Weight Details |
|
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 41.5 cm |
| Shipping Height | 22 cm |
| Shipping Weight | 4.62 kg |
| Shipping Width | 33.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 20 - 80% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Aspect Ratio | 16:9 |
| Brightness | 300 cd/m² |
| Brightness w/touchscreen | 270 cd/m² |
| Color | White |
| Color Support | 16.7 million colors |
| Contrast Ratio | 800:1 |
| Diagonal Size | 13.3" |
| Dimensions (WxDxH) | 32.606 cm x 15 cm x 25.957 cm - with stand |
| Display Type | LCD monitor / TFT active matrix |
| Energy Class | Class A |
| Energy Consumption per Year | 15 kWh |
| Features | TouchPro technology |
| Horizontal Refresh Rate | 30 - 75 kHz |
| Horizontal Viewing Angle | +85 / -85 |
| Image Color Disclaimer | The displayed product image may be a different color |
| Native Resolution | Full HD (1080p) 1920 x 1080 at 60 Hz |
| OSD Languages | Chinese (traditional), Chinese (simplified), English, German, French, Italian, Spanish, Japanese |
| Response Time | 25 ms |
| Screen Coating | Anti-glare |
| Vertical Refresh Rate | 60 Hz |
| Vertical Viewing Angle | +85 / -85 |
| Weight | 2.32 kg |
| Input | |
| Movement Detection Technology | Projected capacitive |
| Type | Touchscreen - touchscreen |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Mechanical | |
| VESA Mounting Interface | 75 x 75 mm |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | VCCI, BSMI, cUL, NOM, CB, CCC, IC, FCC, RoHS, KCC, WEEE, REACH, IPX1, China RoHS, RCM |
| Included Accessories | 2 screws, 3 tie wraps |
| Localization | Worldwide |
| Power | |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Consumption (Off Mode) | 0.2 Watt |
| Power Consumption (On mode) | 10 W |
| Power Consumption (Typical) | 10 Watt |
| Power Consumption Stand by | 0.45 Watt |
