StarTech.com HDMI over IP Extender Kit with Video Wall Support

Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
Quick Details
|
---|
|
StarTech.com HDMI over IP Extender Kit with Video Wall Support
- 1080p
- HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K)
- Video/audio/infrared/serial extender
- HDMI
- up to 100 m
- TAA Compliant
- for P/N: ST12MHDLAN2R
Additional Details | |
---|---|
Price: | |
Mfr Part #: | ST12MHDLAN2K |
SHI Part #: | 36437792 |
Category: | Serial port cards |
UNSPSC: | 43201559 |
Manufacturer: | StarTech.com |
Product Type: | Hardware |
Audio/Video Cables
- Ultra HD 4k x 2k HDMI Cable
- HDMI to HDMI M/M
- 6ft HDMI 1.4 Cable
- Audio/Video Gold-Plated (HDMM6)
- HDMI cable
- HDMI (M) to HDMI (M)
- Ultra HD 4k x 2k HDMI Cable
- HDMI to HDMI M/M
- 3 meter HDMI 1.4 Cable
- Audio/Video Gold-Plated (HDMM3M)
- HDMI cable
- HDMI male to HDMI male
General Information | |
---|---|
Category | Serial port cards |
Description | StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p - HDMI over Cat5 / Cat6 Transmitter and Receiver Kit (ST12MHDLAN2K) - Video/audio/infrared/serial extender - HDMI - up to 100 m - TAA Compliant - for P/N: ST12MHDLAN2R |
Manufacturer | StarTech.com |
UNSPSC | 43201559 |
Main Specifications | |
Dimensions & Weight / Depth | 13.1 cm |
Dimensions & Weight / Height | 3.1 cm |
Dimensions & Weight / Weight | 80 g |
Dimensions & Weight / Width | 11.8 cm |
Header / Brand | StarTech.com |
Header / Country Kits |
|
Networking / Connectivity Technology | Wired |
Networking / Data Link Protocol | HDMI |
Networking / Form Factor | External |
Networking / Type | Video/audio/infrared/serial extender |
Packaged Quantity | 1 |
Service & Support / Type | 2-year warranty |
Compatibility Information | |
Designed For | P/N: ST12MHDLAN2R |
Dimensions & Weight | |
Depth | 13.1 cm |
Height | 3.1 cm |
Weight | 80 g |
Width | 11.8 cm |
Dimensions & Weight (Shipping) | |
Shipping Weight | 200 g |
Environmental Parameters | |
Humidity Range Operating | 0 - 80% |
Max Operating Temperature | 40 °C |
Min Operating Temperature | 0 °C |
Expansion / Connectivity | |
Interfaces |
|
General | |
Color | Black |
Device Type | Video/audio/infrared/serial extender |
Form Factor | External |
Localization | North Asia, Japan, Europe, United Kingdom, Australia, New Zealand |
Manufacturer Warranty | |
Service & Support | Limited warranty - 2 years |
Miscellaneous | |
Cables Included |
|
Compliant Standards | RoHS, FCC |

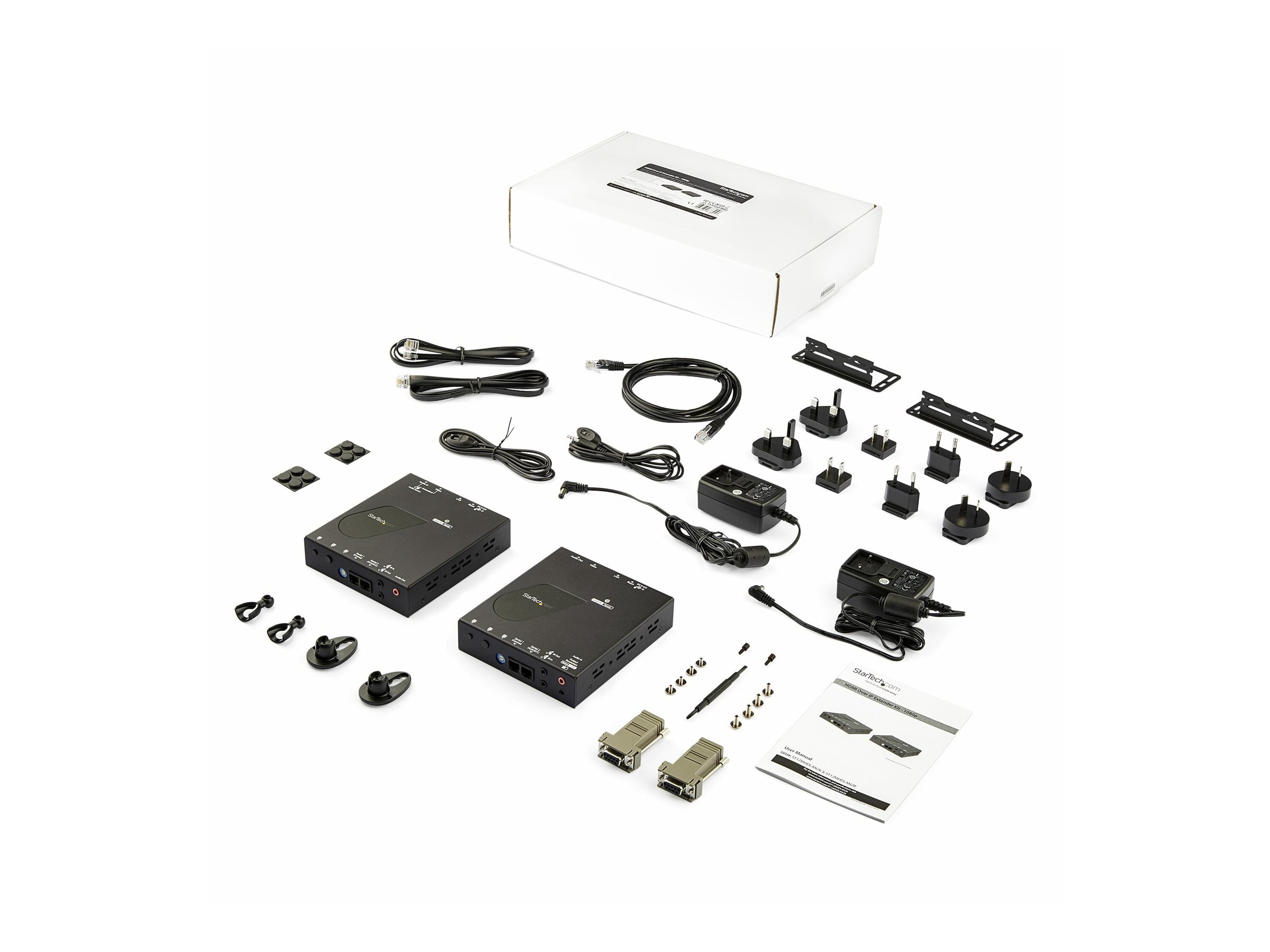

Included Accessories | IR receiver, IR transmitter, 8 foot pads |
Mounting Kit | Included |
Rack Mounting Kit | Included |
TAA Compliant | Yes |
Networking | |
Connectivity Technology | Wired |
Data Link Protocol | HDMI |
Features | Daisy-chaining support, wall mountable |
Max Resolution | 1920 x 1080 @ 60 Hz |
Max Transfer Distance | 100 m |
Status Indicators | Power, link OK, status |
Power | |
Max Supported Qty | 2 |
Power Consumption Operational | 10 Watt |
Power Device | External power adapter |
Voltage Required | AC 120/230 V |
