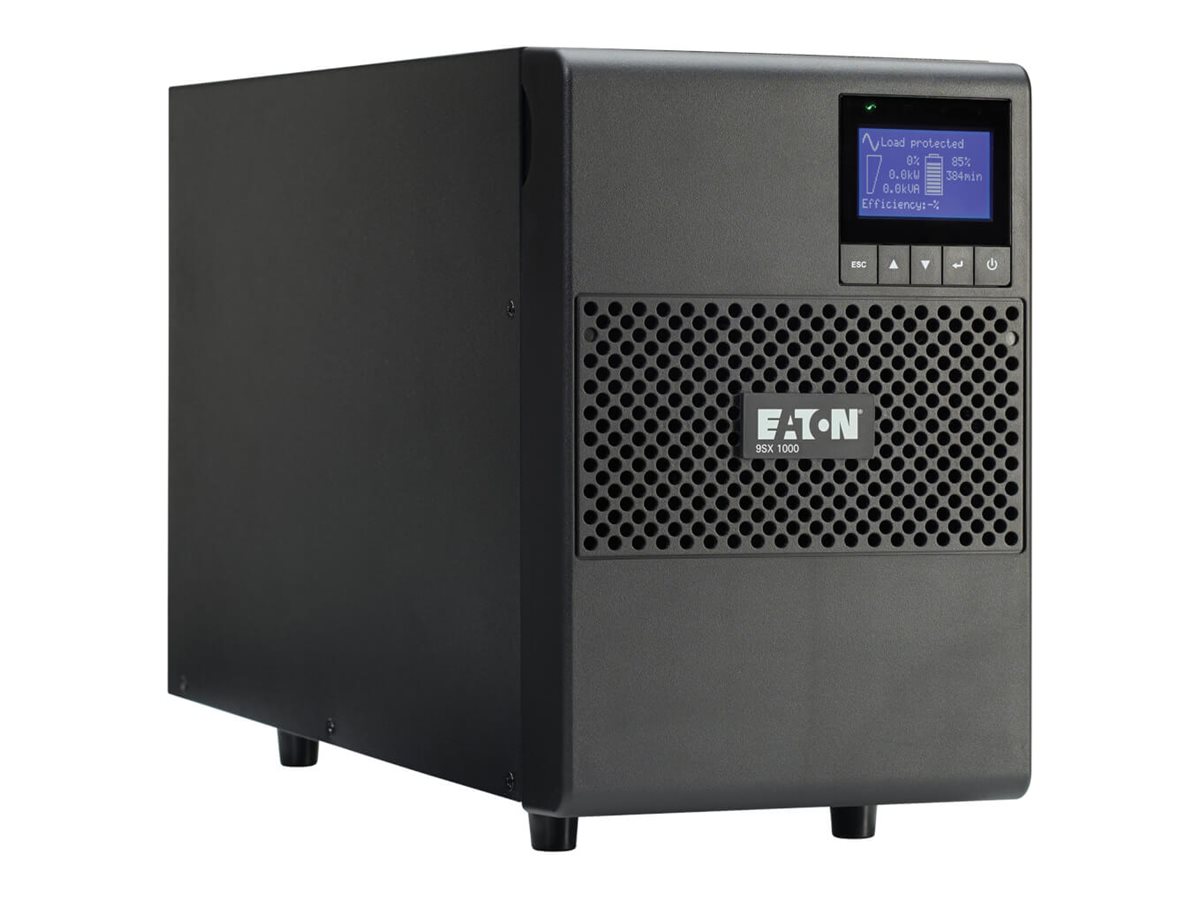

Eaton 9SX 9SX1000 - UPS
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9SX 9SX1000 - UPS
- AC 100/110/120/125 V
- 900 Watt
- 1000 VA
- RS-232, USB
- output connectors: 6
- black
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 9SX1000 |
| SHI Part #: | 35952811 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 9SX 9SX1000 - UPS - AC 100/110/120/125 V - 900 Watt - 1000 VA - RS-232, USB - output connectors: 6 - black |
| Manufacturer | Eaton |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 38.6 cm |
| Dimensions & Weight / Height | 25.1 cm |
| Dimensions & Weight / Weight | 14.8 kg |
| Dimensions & Weight / Width | 16 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | External |
| Power Device / Output Connector Qty | 6 |
| Power Device / Power Capacity (VA) | 1000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 100/110/120/125 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Features | Sealed |
| Technology | Lead acid |
| Dimensions & Weight | |
| Depth | 38.6 cm |
| Height | 25.1 cm |
| Weight | 14.8 kg |
| Width | 16 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 96% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 50 dBA |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Color | Black |
| Device Type | UPS - external |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | FCC, cULus |
| Features | Advance Battery Management (ABM), LCD display, hot-swappable batteries, 3-stage charging, double conversion |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Efficiency | 88% |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power NEMA 5-15P |
| Input Voltage | AC 100/110/120/125 V |
| Input Voltage Range | AC 100 - 138 V |
| Input Voltage Range (Adjustable) | AC 60 - 144 V |
| Output Voltage | AC 100/110/120/125 V 50/60 Hz |
| Output Waveform | Sinewave |
| Power Capacity | 900 Watt / 1000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details | 6 x power NEMA 5-15R |
| Surge Suppression | Yes |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Intelligent Power Manager |
