Geist Switched Outlet Level Monitoring EC MUU3EGB0-24PK37-2C20A9A00-S
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

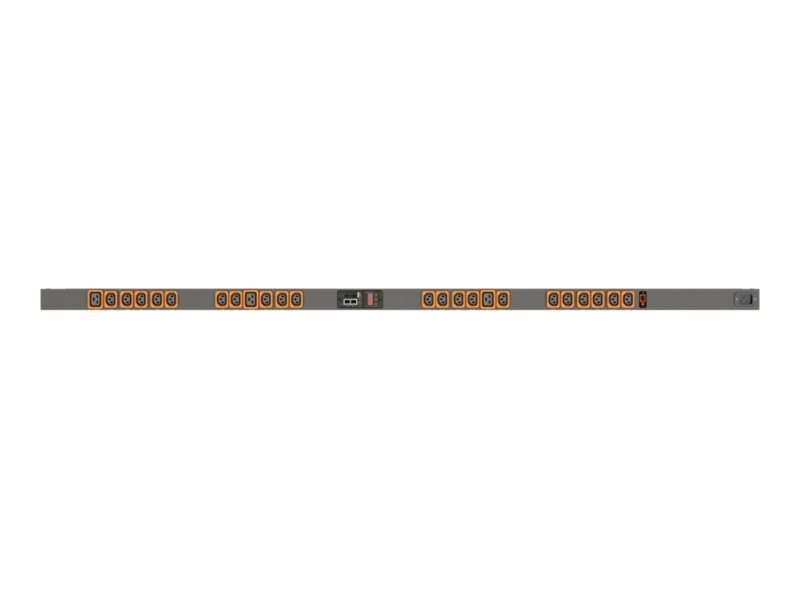

Geist Switched Outlet Level Monitoring EC MUU3EGB0-24PK37-2C20A9A00-S
- Power distribution unit (rack-mountable)
- AC 120/208/230 V
- 3.6 kW
- Ethernet 10/100
- input: IEC 60320 C20
- output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13)
- 0U
- 3 m
- black
| Additional Details | |
|---|---|
| Mfr Part #: | UU30002L |
| SHI Part #: | 35845410 |
| Category: | Power distribution units PDUs |
| UNSPSC: | 39121017 |
| Manufacturer: | Vertiv |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Power distribution units PDUs |
| Description | Geist Switched Outlet Level Monitoring EC MUU3EGB0-24PK37-2C20A9A00-S - Power distribution unit (rack-mountable) - AC 120/208/230 V - 3.6 kW - Ethernet 10/100 - input: IEC 60320 C20 - output connectors: 24 (3 x IEC 60320 C19, 21 x IEC 60320 C13) - 0U - 3 m - black |
| Manufacturer | Vertiv |
| UNSPSC | 39121017 |
| Main Specifications | |
| Dimensions & Weight / Depth | 6.6 cm |
| Dimensions & Weight / Height | 168.3 cm |
| Dimensions & Weight / Width | 5.1 cm |
| General / Subcategory | Power distribution devices |
| Header / Brand | Geist |
| Miscellaneous / Product Color | Black |
| Networking / Remote Management Interface | Ethernet 10/100 |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Output Connector Qty | 24 |
| Power Device / Voltage Required | AC 120/208/230 V |
| Product Type | Power distribution unit |
| Service & Support / Type | 5-year warranty with product registration |
| Dimensions & Weight | |
| Depth | 6.6 cm |
| Height | 168.3 cm |
| Width | 5.1 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 8.16 kg |
| Environmental Parameters | |
| Max Operating Temperature | 60 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black |
| Cord Length | 3 m |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years with product registration |
| Miscellaneous | |
| Cables Included | Power cable 3 m |
| Compliant Standards | cUL, EN55024, UL 60950, CB, RoHS, IEC 60950-1, FCC Part 15 A, China RoHS, RCM, EN 55032 |
| Features | Vertical orientation, LED display, voltage monitoring, current meter, vertical orientation, power factor meter, switched, reboot button, power measuring, phase monitoring, Visible Light Communication (VLC) technology, U-lock outlets, IP reset button |
| Rack Mounting Kit | Included |
| Networking | |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SMTP, NTP |
| Power Device | |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |
| Input Voltage | AC 120/208/230 V |
| Input Voltage Range | AC 100 - 240 V |
| Max Electric Current | 20 A |
| Output Voltage | AC 120/208/230 V 50/60 Hz |
| Power Capacity | 3.6 kW |
| Power Output Connectors Details |
|
