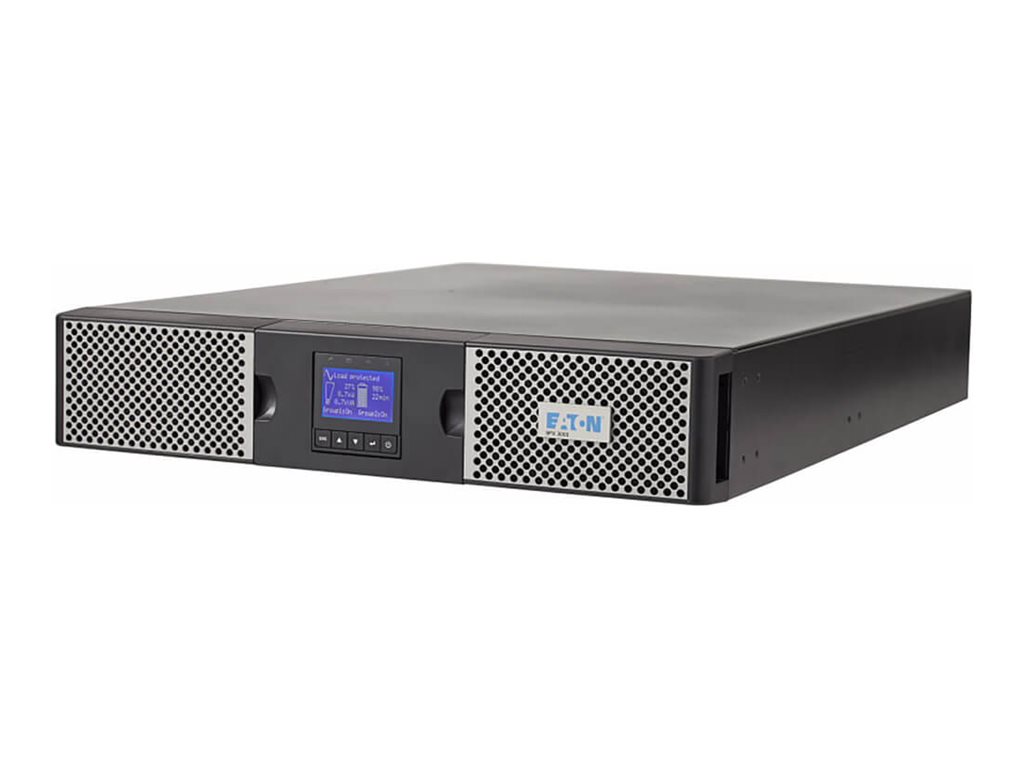

Eaton 9PX 9PX2000RT - UPS (rack-mountable / external)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Eaton 9PX 9PX2000RT - UPS (rack-mountable / external)
- AC 120 V
- 1800 Watt
- 2000 VA
- RS-232, USB
- output connectors: 7
- black, silver
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | 9PX2000RT |
| SHI Part #: | 32322884 |
| Category: | Uninterruptible power supplies |
| UNSPSC: | 39121011 |
| Manufacturer: | Eaton |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Uninterruptible power supplies |
| Description | Eaton 9PX 9PX2000RT - UPS (rack-mountable / external) - AC 120 V - 1800 Watt - 2000 VA - RS-232, USB - output connectors: 7 - black, silver |
| Manufacturer | Eaton |
| UNSPSC | 39121011 |
| Main Specifications | |
| Dimensions & Weight / Depth | 60.5 cm |
| Dimensions & Weight / Height | 8.65 cm |
| Dimensions & Weight / Weight | 27.9 kg |
| Dimensions & Weight / Width | 44 cm |
| General / Subcategory | UPS |
| Header / Brand | Eaton |
| Miscellaneous / Product Color |
|
| Networking / Remote Management Interface |
|
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable / external |
| Power Device / Output Connector Qty | 7 |
| Power Device / Power Capacity (VA) | 2000 VA |
| Power Device / UPS Technology | On-line |
| Power Device / Voltage Required | AC 120 V |
| Product Type | UPS |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Features | Maintenance free, sealed |
| Technology | Lead acid |
| Type | Expandable |
| Dimensions & Weight | |
| Depth | 60.5 cm |
| Height | 8.65 cm |
| Weight | 27.9 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Sound Emission | 47 dB |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Color | Black, silver |
| Device Type | UPS - rack-mountable / external |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | NOM, CISPR 22, IEC 62040-2, RoHS, cULus, VCCI Class B, FCC Part 15 Class B |
| Features | LED display, Remote Emergency Power Off (REPO) |
| Included Accessories | 4-post rail kit |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Power Device | |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x power NEMA 5-20P |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 100 - 144 / 60 - 144 V |
| Output Voltage | AC 120 V ± 1% |
| Power Capacity | 1800 Watt / 2000 VA |
| Power Factor (PF) | 0.99 |
| Power Output Connectors Details |
|
| Surge Suppression | Yes |
| Total Harmonic Distortion (THD) | 3 % |
| UPS Technology | On-line |
| Software / System Requirements | |
| Software Included | Intelligent Power Manager |
