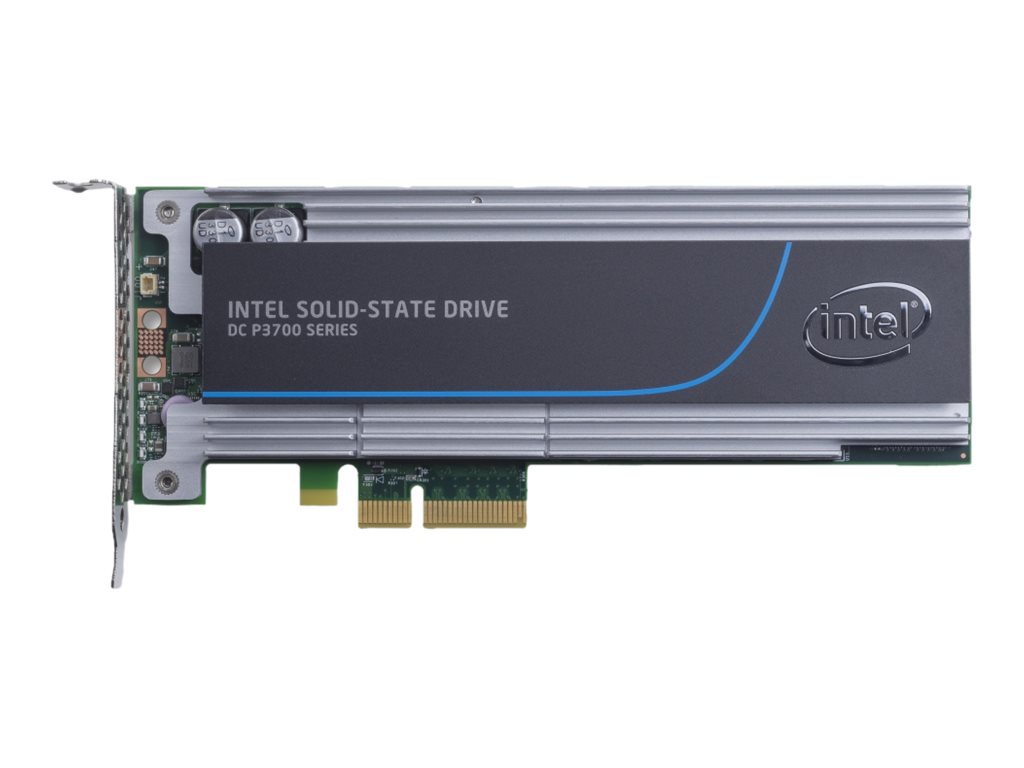

Intel P3700 Enterprise Performance Flash Adapter


€8,376.00
Intel P3700 Enterprise Performance Flash Adapter

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Solid state drive
  • 1.6 TB
  • internal
  • low profile
  • PCI Express 3.0 x4 (NVMe)
Intel P3700 Enterprise Performance Flash Adapter
  • Solid state drive
  • 1.6 TB
  • internal
  • low profile
  • PCI Express 3.0 x4 (NVMe)
  • for Flex System x240 M5; System x3550 M5; x3650 M5; x3850 X6; x3950 X6
  Additional Details
Price: €8,376.00
Mfr Part #: 00YA812
SHI Part #: 31511644
Category: Solid state drive SSD
UNSPSC: 43201830
Manufacturer: Lenovo
Product Type: Hardware
General Information
CategorySolid state drive SSD
DescriptionIntel P3700 Enterprise Performance Flash Adapter - Solid state drive - 1.6 TB - internal - low profile - PCI Express 3.0 x4 (NVMe) - for Flex System x240 M5; System x3550 M5; x3650 M5; x3850 X6; x3950 X6
ManufacturerLenovo
MSRP€8,325.00
UNSPSC43201830
Main Specifications
Dimensions & Weight / Depth167 mm
Dimensions & Weight / Height19 mm
Dimensions & Weight / Weight195 g
Dimensions & Weight / Width69 mm
Hard Drive / Capacity1.6 TB
Hard Drive / Form FactorLow profile
Hard Drive / Hard Drive TypeInternal hard drive
Hard Drive / InterfacePCI Express 3.0 x4 (NVMe)
Hard Drive / InterfacePCI Express 3.0 x4 (NVMe)
Header / BrandIntel
Packaged Quantity1
Service & Support / Type1-year warranty
Storage / TypeSolid state drive
Compatibility Information
Designed For
  • Lenovo Flex System x240 M5 9532
  • Lenovo System x3550 M5 5463
  • Lenovo System x3650 M5 5462
  • Lenovo System x3850 X6 6241
  • Lenovo System x3950 X6 6241
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature55 °C
Min Operating Temperature0 °C
Vibration Tolerance (operating)2.17 g @ 5-700 Hz
Expansion & Connectivity
Compatible BayLow profile
Interfaces1 x PCI Express 3.0 x4 (NVMe)
General
Capacity1.6 TB
Depth167 mm
Device TypeSolid state drive - internal
FeaturesHigh Endurance Technology (HET), Enhanced Power Loss Data Protection, Thermal throttling, Read Unrecoverable Bit Error Rate (UBER) 10e-17, half-height half-length form-factor, S.M.A.R.T.
Form FactorLow profile
Height19 mm
InterfacePCIe 3.0 x4 (NVMe)
NAND Flash Memory TypeMulti-level cell (MLC)
Weight195 g
Width69 mm
Manufacturer Warranty
Service & SupportLimited warranty - replacement - 1 year
Miscellaneous
Compliant StandardsBSMI CNS 13438 Class B, KCC, EN 61000-3-3:2008, Directive 2011/65/EU, EN 61000-3-2:2006+A1:2009+A2:2009, AS/NZS CISPR 22, MSIP, NMB-3 Class B, CAN ICES-3 Class B, EN 55024:2010, EN 55022:2010, FCC CFR47 Part 15 B Class B, VCCI V-3/2013.04 Class B, ANSI C63.4-2009 Class B, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Included Accessories2U bracket
Performance
4KB Random Read450000 IOPS
4KB Random Write150000 IOPS
Average Latency0.02 ms
Internal Data Rate2.8 GBps (read) / 1.9 GBps (write)
SSD Endurance62.05 PB
Power
Power Consumption25 Watt
Reliability
MTBF2,000,000 hours
Software & System Requirements
OS RequiredMicrosoft Windows Server 2008 R2, SuSE Linux Enterprise Server 11 for x86/AMD64/Intel EM64T, Red Hat Linux Enterprise Server 6 x64 Edition, Microsoft Windows Server 2012, Microsoft Windows Server 2012 R2, Red Hat Enterprise Linux 7, SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T, VMware vSphere 5.5 (ESXi), SuSE Linux Enterprise Server 12, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 12 with Xen
