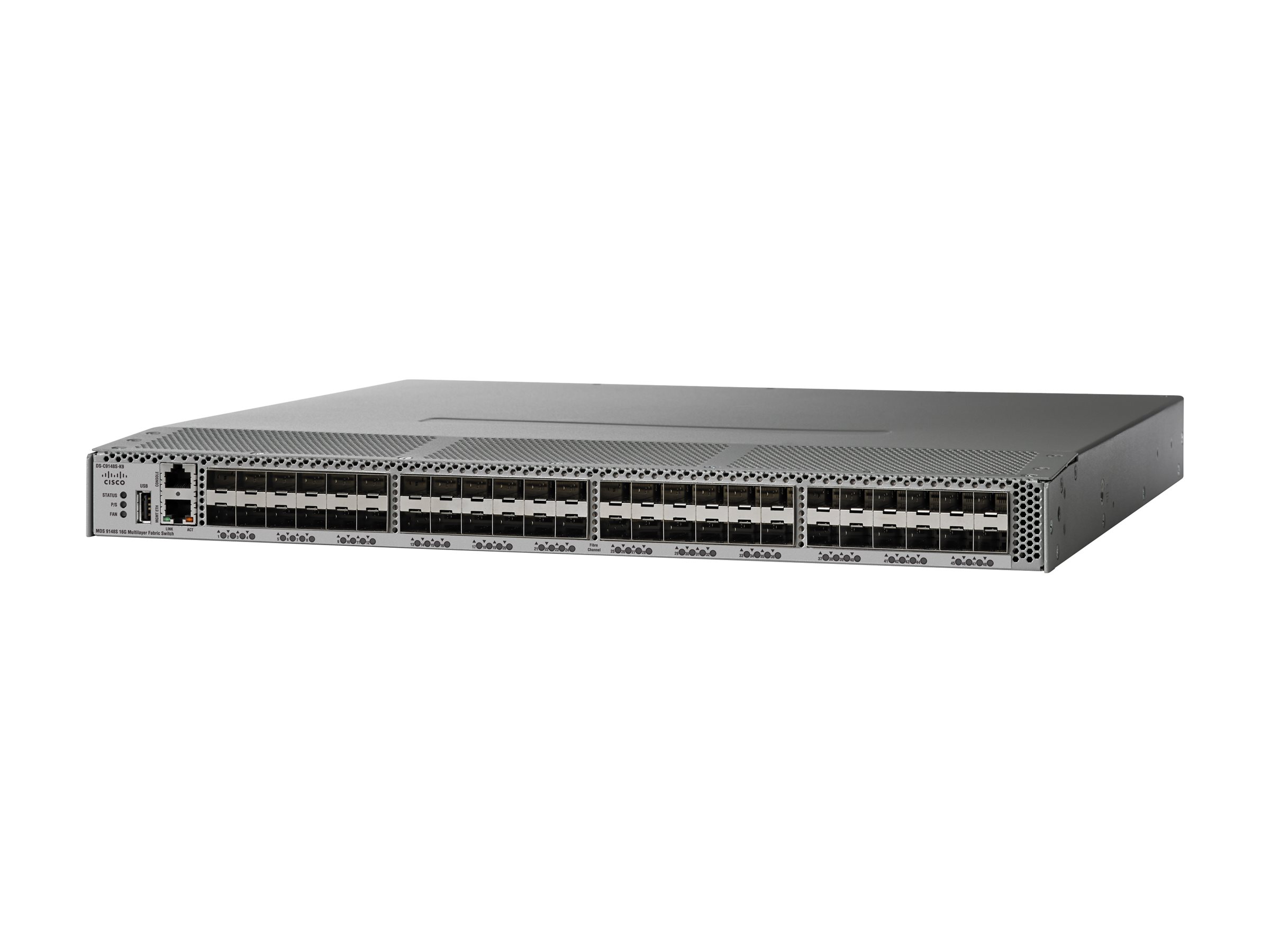

HPE StoreFabric SN6010C


€6,697.00
HPE StoreFabric SN6010C

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 12 x 16Gb Fibre Channel SFP+
  • rack-mountable
HPE StoreFabric SN6010C
  • Switch
  • managed
  • 12 x 16Gb Fibre Channel SFP+
  • rack-mountable
  Additional Details
Price: €6,697.00
Mfr Part #: K2Q16A#05Y
SHI Part #: 31443054
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE StoreFabric SN6010C - Switch - managed - 12 x 16Gb Fibre Channel SFP+ - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€5,186.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth47.98 cm
Dimensions & Weight / Height4.47 cm
Dimensions & Weight / Weight10 kg
Dimensions & Weight / Width43.59 cm
Header / BrandHPE
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty12
Networking / TypeSwitch
Packaged Quantity1
System Requirements / OS RequiredCisco MDS 9000 NX-OS 6.2(9) or later
Dimensions & Weight
Depth47.98 cm
Height4.47 cm
Weight10 kg
Width43.59 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature40 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 12 x 16Gb Fibre Channel SFP+
  • 1 x management (Gigabit LAN)
  • 1 x management (RS-232)
  • 36 x 16Gb Fibre Channel SFP+ Ports on Demand
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2)
Device TypeSwitch - 12 ports - managed
Enclosure TypeRack-mountable 1U
Encryption AlgorithmAES
FeaturesTrunking, Syslog support, LUN zoning, QoS, redundant hot swappable fans, MAC and IP-based ACLs support
Fibre ChannelFC-AL, FC-AL-2, FC-BB, FC-DA, FC-FLA, FC-FS, FC-GS, FC-GS-3, FC-GS-4, FC-IP, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5
PerformanceAggregate bandwidth: 192 Gbps
Ports12 x 16Gb Fibre Channel SFP+
Remote Management ProtocolSNMP, SNMP 3, SMI-S, SSH-2, CLI
SubtypeFibre Channel
Miscellaneous
Compliant StandardsETSI, CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, EN50082-1, EN 61000-6-1, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825, AS/NZS 60950, IEC 60825, VCCI Class A, KN24, AS/NZS CISPR 22, ETSI 300 019, CAN/CSA-C22.2 No. 60950-1
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational101 Watt
Power DeviceInternal power supply - hot-plug
Power Provided300 Watt
Power RedundancyYes
Power Redundancy Scheme1+1
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
OS RequiredCisco MDS 9000 NX-OS 6.2(9) or later
Software IncludedCisco Data Center Network Manager
