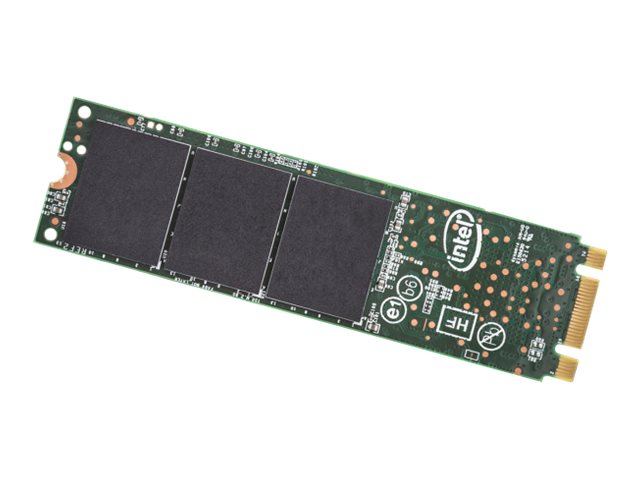

Intel Solid-State Drive 535 Series
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Intel Solid-State Drive 535 Series
- SSD
- encrypted
- 180 GB
- internal
- M.2 2280
- SATA 6Gb/s
- 256-bit AES
| Additional Details | |
|---|---|
| Mfr Part #: | SSDSCKJW180H601 |
| SHI Part #: | 30031765 |
| Category: | Solid state drive SSD |
| UNSPSC: | 43201830 |
| Manufacturer: | Intel |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Solid state drive SSD |
| Description | Intel Solid-State Drive 535 Series - SSD - encrypted - 180 GB - internal - M.2 2280 - SATA 6Gb/s - 256-bit AES |
| Manufacturer | Intel |
| UNSPSC | 43201830 |
| Main Specifications | |
| Dimensions & Weight / Depth | 2.23 mm |
| Dimensions & Weight / Height | 80 mm |
| Dimensions & Weight / Weight | 10 g |
| Dimensions & Weight / Width | 22 mm |
| Hard Drive / Capacity | 180 GB |
| Hard Drive / Form Factor | M.2 2280 |
| Hard Drive / Hard Drive Type | Internal hard drive |
| Hard Drive / Interface | Serial ATA-600 |
| Hard Drive / Interface | Serial ATA-600 |
| Header / Brand | Intel |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Storage / Type | Solid state drive |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 3.13 g @ 5-800 Hz |
| Vibration Tolerance (operating) | 2.17 g @ 5-700 Hz |
| Expansion & Connectivity | |
| Compatible Bay | M.2 2280 |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| General | |
| Capacity | 180 GB |
| Depth | 2.23 mm |
| Device Type | Solid state drive - internal |
| Encryption Algorithm | 256-bit AES |
| Features | Native Command Queuing (NCQ), 48-bit Address, Smart Response Technology, Advanced Power Management technology, End-to-end data protection, power management support, Windows WHCK certified, Rapid Start Technology, S.M.A.R.T. |
| Form Factor | M.2 2280 |
| Hardware Encryption | Yes |
| Height | 80 mm |
| Interface | SATA 6Gb/s |
| NAND Flash Memory Type | 16nm multi-level cell (MLC) |
| Weight | 10 g |
| Width | 22 mm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | UL, VCCI, C-Tick, BSMI, FCC Part 15 B, RoHS, UL 60950-1 Second Edition, KCC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, SATA-IO, EN 55024:2010, EN 55022:2010, CAN/CSA-CISPR 22-10 |
| Performance | |
| 4KB Random Read | 41000 IOPS |
| 4KB Random Write | 80000 IOPS |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 540 MBps (read) / 490 MBps (write) |
| Power | |
| Power Consumption |
|
| Reliability | |
| MTBF | 1,200,000 hours |
| Non-Recoverable Errors | 1 per 10^16 |
