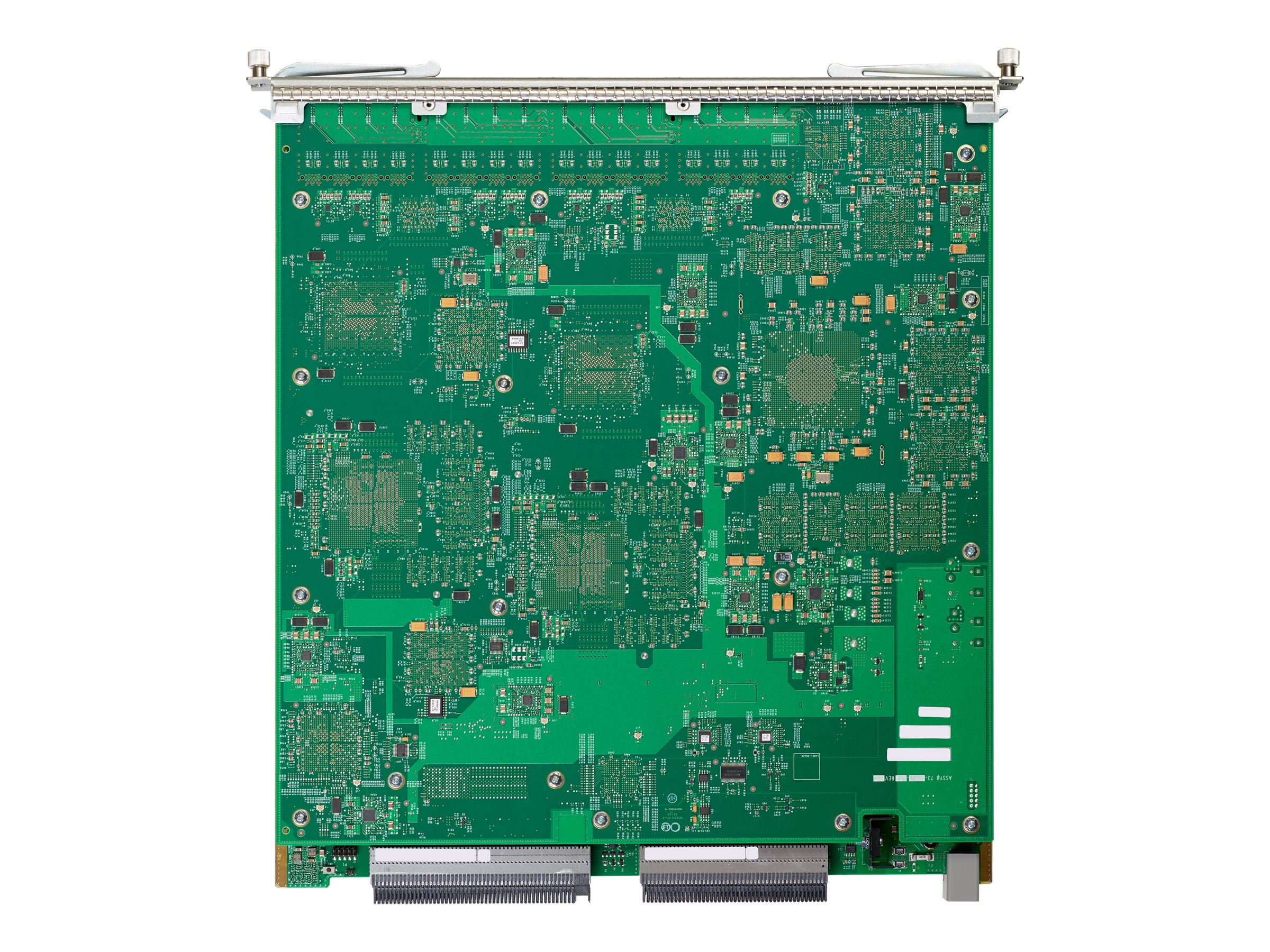

Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with dual DFC4


MSRP€55,844.00
€40,913.00
Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with dual DFC4

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Expansion module
  • 10 Gigabit SFP+ x 32
  • for Catalyst 6832-X Chassis (Standard Tables)
Cisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with dual DFC4
  • Expansion module
  • 10 Gigabit SFP+ x 32
  • for Catalyst 6832-X Chassis (Standard Tables)
  Additional Details
Price: €40,913.00
MSRP: €55,844.00
Mfr Part #: C6800-32P10G=
SHI Part #: 29790379
Category: Network interface cards
UNSPSC: 43201404
Manufacturer: Cisco Systems
Product Type: Hardware
General Information
CategoryNetwork interface cards
DescriptionCisco Catalyst 6800 Series 10 Gigabit Ethernet Fiber Module with dual DFC4 - Expansion module - 10 Gigabit SFP+ x 32 - for Catalyst 6832-X Chassis (Standard Tables)
ManufacturerCisco Systems
MSRP€55,844.00
UNSPSC43201404
Main Specifications
Dimensions & Weight / Depth41.65 cm
Dimensions & Weight / Height4.39 cm
Dimensions & Weight / Weight6.5 kg
Dimensions & Weight / Width39.11 cm
Header / BrandCisco
Networking / Connectivity TechnologyWired
Networking / TypeExpansion module
Packaged Quantity1
Compatibility Information
Designed ForCisco Catalyst 6832-X Chassis (Standard Tables)
Dimensions & Weight
Depth41.65 cm
Height4.39 cm
Weight6.5 kg
Width39.11 cm
Environmental Parameters
Humidity Range Operating10 - 90% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Interfaces32 - SFP+
General
Device TypeExpansion module
Form FactorPlug-in module
Miscellaneous
Compliant StandardsCISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, IEC 60825-1, EN 60825-1, GR-1089-CORE, CAN/CSA C22.2 No. 60950, VCCI Class A, CNS 13438(95) Class A, GR-63-CORE, KN22 Class A, ETS 300 386, AS/NZS CISPR 22, ETSI 300 019, 21 CFR 1040.10, EN 55022 Class A
Encryption Algorithm128-bit AES
Networking
Capacity
  • Multicast entries (IPv4): 64000
  • Multicast entries (IPv6): 64000
  • IPv4 forwarding table entries: 256000
  • IPv6 forwarding table entries: 128000
  • NetFlow entries: 1000000
  • ACL entries: 64000
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ae, IEEE 802.3an, IEEE 802.3aq
Connectivity TechnologyWired
FeaturesMPLS support, IGMP snooping, LLQ, CBWFQ, WRED, ACL support, QoS, Jumbo Frames support, MLD snooping, DWRR, SRR, NetFlow, CoS, DSCP support, VPLS
MAC Address Table Size128K entries
Performance
  • Switching fabric bandwidth: 80 Gbps
  • Forwarding performance: 120 Mpps
Ports10 Gigabit SFP+ x 32
Remote Management ProtocolRMON, SMON
Status IndicatorsStatus, link/activity
Power
Power Consumption Operational587.6 Watt
Processor / Memory
RAM2 GB
