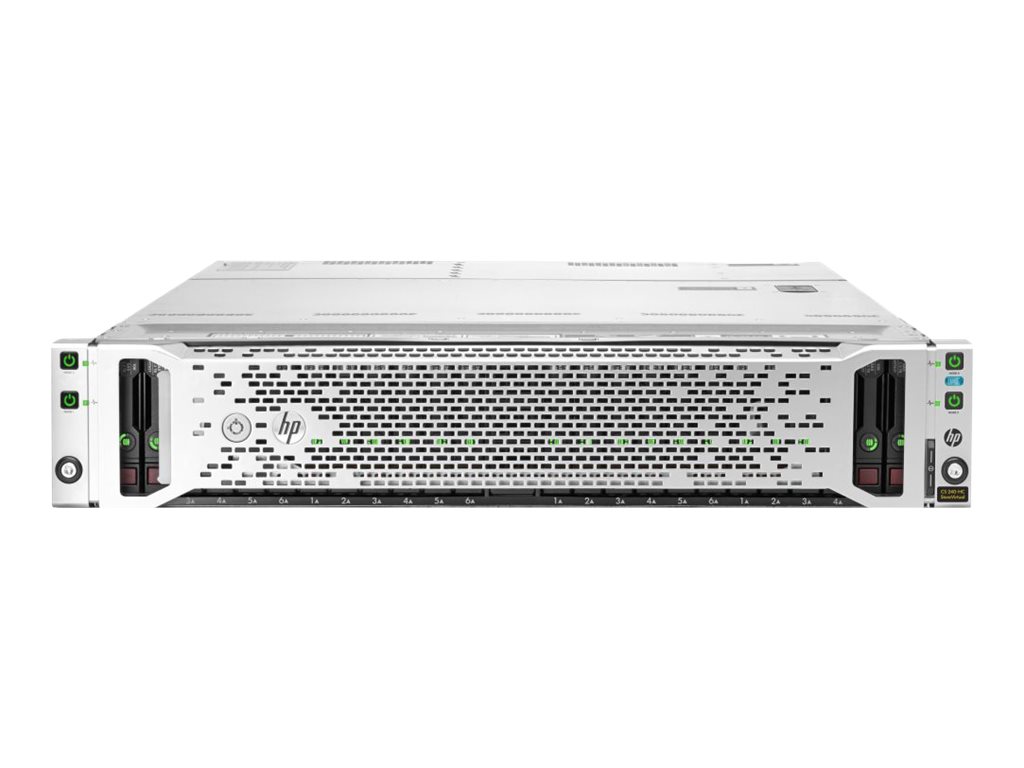

HPE ConvergedSystem 240-HC StoreVirtual System
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
HPE ConvergedSystem 240-HC StoreVirtual System
- Hard drive array
- 28.8 TB
- 24 bays (SAS-2)
- HDD 1.2 TB x 24
- 10 Gigabit Ethernet (external)
- rack-mountable
- 2U
| Additional Details | |
|---|---|
| Mfr Part #: | K2Q48A |
| SHI Part #: | 29776324 |
| Category: | Disk arrays |
| UNSPSC: | 43201802 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Disk arrays |
| Description | HPE ConvergedSystem 240-HC StoreVirtual System - Hard drive array - 28.8 TB - 24 bays (SAS-2) - HDD 1.2 TB x 24 - 10 Gigabit Ethernet (external) - rack-mountable - 2U |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43201802 |
| Main Specifications | |
| Dimensions & Weight / Depth | 82 cm |
| Dimensions & Weight / Height | 8.74 cm |
| Dimensions & Weight / Weight | 35.52 kg |
| Dimensions & Weight / Width | 44.81 cm |
| Hard Drive / Capacity | 1.2 TB |
| Hard Drive / Interface | Serial Attached SCSI 2 |
| Hard Drive / Interface Type | Serial Attached SCSI 2 |
| Header / Brand | HPE |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Storage / HDD Array External Interface | 10 Gigabit Ethernet |
| Storage / HDD Array External Interface Class | Ethernet |
| Storage / Rack-mountable | Rack-mountable |
| Storage / Total Array Capacity | 28.8 TB |
| Storage / Type | Hard drive array |
| Chassis | |
| Installed Devices / Modules Qty | 24 |
| Supported Devices / Modules Qty | 24 |
| Supported Drives | SAS-2 |
| Dimensions & Weight | |
| Depth | 82 cm |
| Height | 8.74 cm |
| Weight | 35.52 kg |
| Width | 44.81 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 30 °C |
| Min Operating Temperature | 10 °C |
| Expansion / Connectivity | |
| Expansion Bays | 24 (total) / 0 (free) x hot-swap - 2.5" SFF |
| Interfaces |
|
| General | |
| Device Type | Hard drive array |
| Enclosure Type | Rack-mountable - 2U |
| Hard Drive | |
| Capacity | 24 x 1.2 TB |
| Features | Dual Port |
| Interface Type | SAS 6Gb/s |
| Spindle Speed | 10000 rpm |
| Type | HDD - hot-swap |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Features | 80 PLUS Platinum Plus |
| Included Accessories | Rail kit |
| Software Included | VMware vSphere 5.5, VMware vCenter 5.5 with HP OneView |
| Power | |
| Max Supported Qty | 2 |
| Power Device | 2 x internal power supply - hot-plug |
| Power Provided | 1500 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V |
| Processor | |
| CPU | 8 x Xeon E5-2640V2 2 GHz |
| RAM | |
| Installed Size | 512 GB |
| Storage | |
| HDD Array External Interface | 10 Gigabit Ethernet |
| Total Array Capacity | 28.8 TB |
| Storage Controller | |
| Cache / Buffer Size (Max) | 8 GB |
| Installed Qty | 4 |
| Interface Type | SAS 6Gb/s |
| RAID Level | RAID 0, RAID 5, RAID 6, RAID 10 |
| Type | RAID |
| Storage Controller (2nd) | |
| Installed Qty | 4 |
| System Requirements | |
| OS Required | Microsoft Windows Server 2012 |
