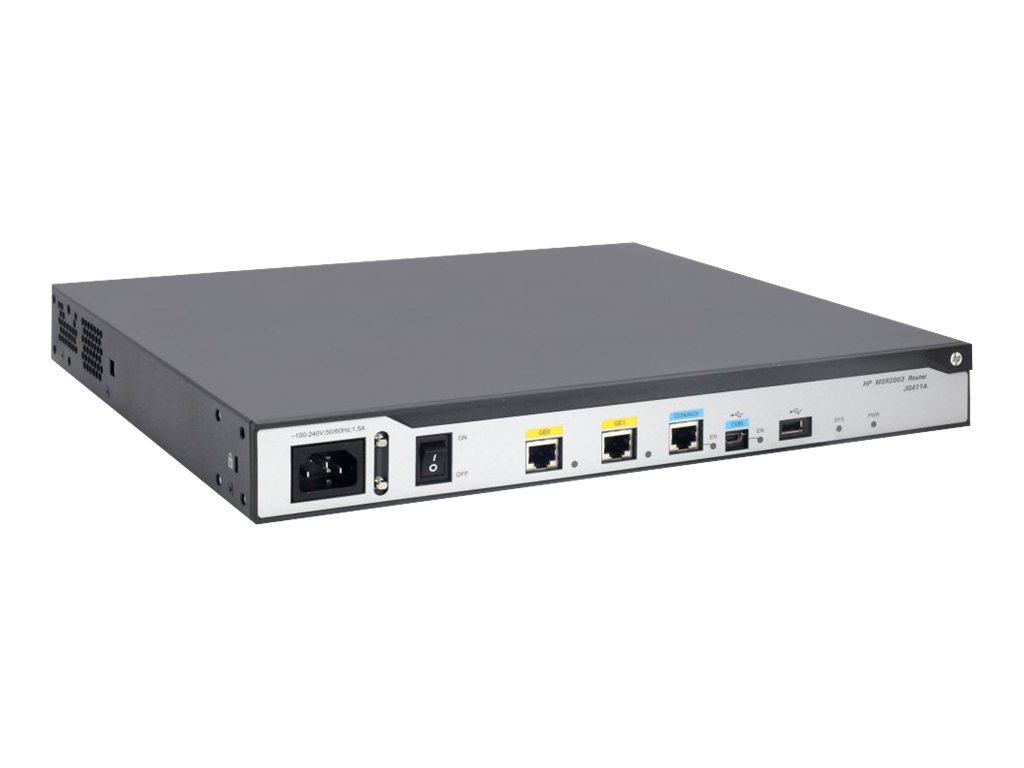

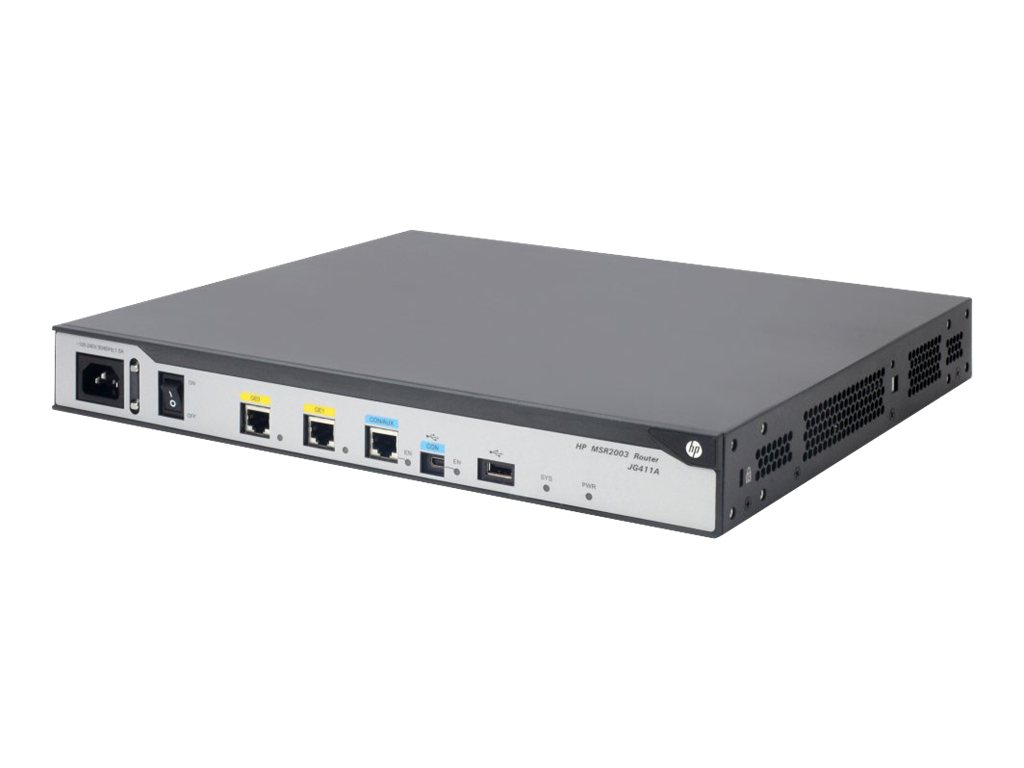

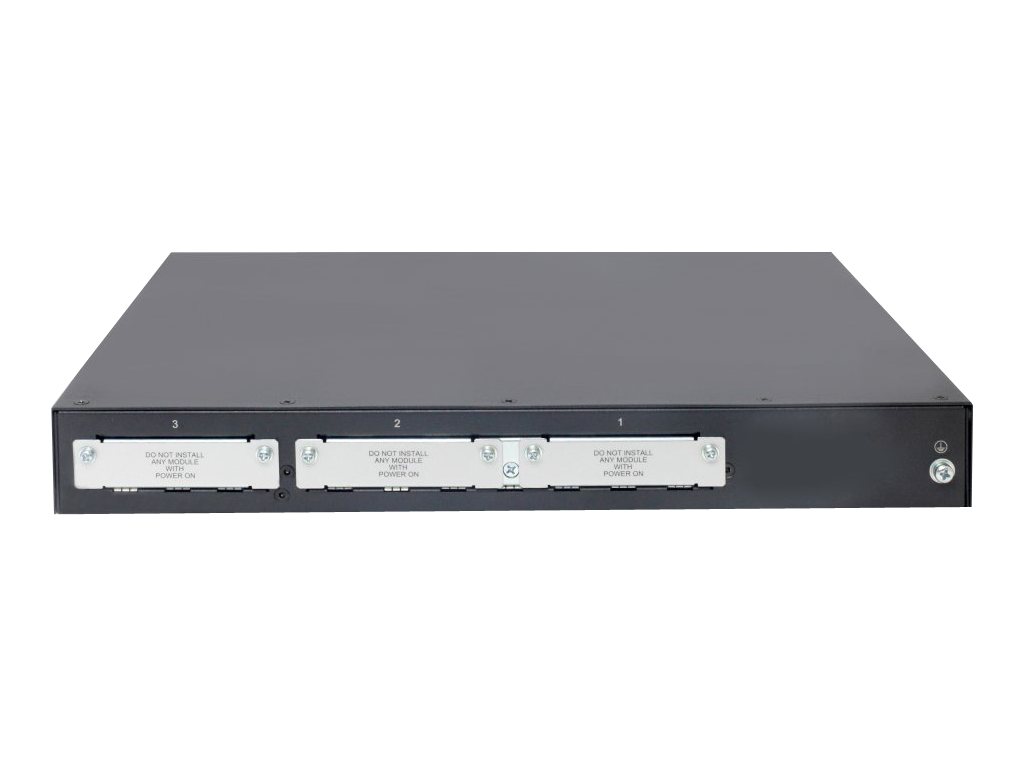

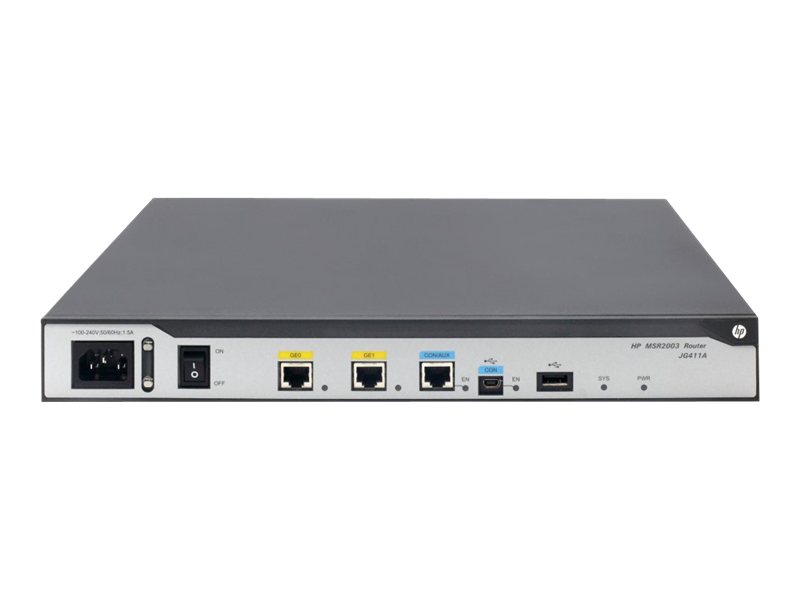

HPE MSR2003 - Router 1GbE


MSRP€1,753.00
€1,493.00
HPE MSR2003 - Router 1GbE

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • rack-mountable
HPE MSR2003 - Router 1GbE
  • rack-mountable
  Additional Details
Price: €1,493.00
MSRP: €1,753.00
Mfr Part #: JG411A#ABB
SHI Part #: 28474216
Category: Routers
UNSPSC: 43222609
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryRouters
DescriptionHPE MSR2003 - Router 1GbE - rack-mountable
ManufacturerHewlett Packard Enterprise
MSRP€1,753.00
UNSPSC43222609
Main Specifications
Dimensions & Weight / Depth30 cm
Dimensions & Weight / Height4.42 cm
Dimensions & Weight / Weight3.45 kg
Dimensions & Weight / Width36 cm
Header / BrandHPE
Header / Country KitsEurope
Header / LocalizationEnglish
Miscellaneous / Product ColorGray
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Form Factor
  • Desktop
  • Rack-mountable
Networking / TypeRouter
Packaged Quantity1
Service & Support / Type1-year warranty
Dimensions & Weight
Depth30 cm
Height4.42 cm
Weight3.45 kg
Width36 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Max Operating Temperature45 °C
Min Operating Temperature0 °C
Expansion / Connectivity
Expansion Slots3 (total) / 3 (free) x Smart Interface Card (SIC)
Installed Modules Qty (Max)0 (installed) / 3 (max)
Interfaces
  • 2 x 10Base-T/100Base-TX/1000Base-T - RJ-45
  • USB 2.0: 1 x 4 pin USB Type A
  • Management: 1 x auxiliary
  • Management: 1 x USB
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Capacity
  • Routing table entries: 200000
  • Forwarding table entries: 200000
Compliant StandardsIEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, CISPR 22 Class A, EN 61000-3-3, EN55024, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 68, EMC, ICES-003 Class A, CS-03, EN 61000-4-5, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, EN 60825-1, AS/NZS 60950, ANSI C63.4-2003, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 300 386
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Device TypeRouter
Enclosure TypeDesktop, rack-mountable - modular - 1U
Encryption AlgorithmMD5, TLS
FeaturesFirewall protection, DHCP support, NAT support, VPN support, ARP support, MPLS support, IGMP snooping, Syslog support, port mirroring, IPv6 support, WFQ, RSTP support, VRRP support, MSTP support, TFTP support, ACL support, QoS, CAR, MLD snooping, BFD, URPF, DHCP relay, DVPN, NQA, MSDP, MBGP
Flash Memory256 MB
Network / Transport ProtocolTCP/IP, UDP/IP, L2TP, RSVP, NTP, IPSec, ARP, DHCP
PerformanceThroughput: up to 1 Mpps
Processor1 x 800 MHz
RAM1 GB (installed) / 1 GB (max) - DDR3 SDRAM
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI
Routing ProtocolOSPF, RIP, BGP-4, IS-IS, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, GRE, OSPFv3, PIM-SSM, Multiprotocol BGP, MSDP, static IPv4 routing, static IPv6 routing, RIPng, MLDv2, MLD, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
Manufacturer Warranty
Service & SupportLimited warranty - 1 year
Miscellaneous
LocalizationEnglish / Europe
MTBF92.73 years
Rack Mounting KitIncluded
Power
Power DeviceExternal power adapter
Voltage RequiredAC 120/230 V (50/60 Hz)
