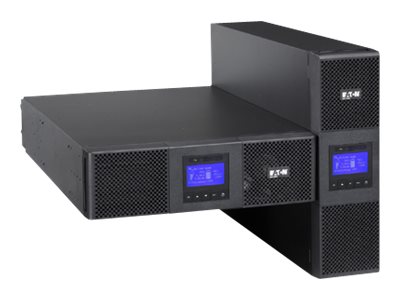

Eaton 9SX 9SX5KIRT - UPS (rack-mountable / external)


€3,340.00
Eaton 9SX 9SX5KIRT - UPS (rack-mountable / external)

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • AC 200/208/220/230/240 V
  • 4500 Watt
  • 5000 VA
  • RS-232, USB
  • PFC
Eaton 9SX 9SX5KIRT - UPS (rack-mountable / external)
  • AC 200/208/220/230/240 V
  • 4500 Watt
  • 5000 VA
  • RS-232, USB
  • PFC
  • 3U
  • 19"
  Additional Details
Price: €3,340.00
Mfr Part #: 9SX5KIRT
SHI Part #: 26316864
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: Eaton
Product Type: Hardware
General Information
CategoryUninterruptible power supplies
DescriptionEaton 9SX 9SX5KIRT - UPS (rack-mountable / external) - AC 200/208/220/230/240 V - 4500 Watt - 5000 VA - RS-232, USB - PFC - 3U - 19"
ManufacturerEaton
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth68.5 cm
Dimensions & Weight / Height13 cm
Dimensions & Weight / Weight48 kg
Dimensions & Weight / Width44 cm
General / SubcategoryUPS
Header / BrandEaton
Networking / Remote Management Interface
  • RS-232
  • USB
Packaged Quantity1
Power Device / Form FactorRack-mountable / external
Power Device / Power Capacity (VA)5000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 200/208/220/230/240 V
Product TypeUPS
Service & Support / Type2-year warranty
Battery
Voltage Provided12 V
Dimensions & Weight
Depth68.5 cm
Height13 cm
Weight48 kg
Width44 cm
Environmental Parameters
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission45 dB
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 1 x RS-232 - 9 pin D-Sub (DB-9)
  • 1 x USB - 4 pin USB Type B
  • 1 x EPO (emergency power off)
General
Battery Enclosure TypePlug-in module
Device TypeUPS - Power Factor Correction (PFC) - rack-mountable / external
Height (Rack Units)3U
Rack Size19"
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables Included
  • 2 x power cable - external
  • Serial cable - external
  • USB cable - external
Compliant StandardsUL, CISPR 22 Class A, ISO 9001, ISO 140001, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 1778, CB, IEC 62040-3, IEC 62040-1-1, IEC 62040-2, FCC Part 15 A, CSA 22.2, IEC 61000-2-2, EN 62040-1-1, EN 62040-2
FeaturesAdvance Battery Management (ABM), LCD display, LED indicators, deep discharge protection, cold-start function, automatic self-test
Included AccessoriesTower stand
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232, USB
Power Device
Circuit ProtectionFuse
Frequency Provided50/60 Hz
Frequency Required40 - 70 Hz
Input ConnectorsHardwire
Input VoltageAC 200/208/220/230/240 V
Input Voltage RangeAC 176 - 276 V
Max Electric Current21 A
Output VoltageAC 200/208/220/230/240 V ± 1% - 50/60 Hz
Output WaveformSinewave
Power Capacity4500 Watt / 5000 VA
Power Output Connectors Details
  • 8 x power IEC 60320 C13
  • 2 x power IEC 60320 C19
  • 1 x hardwire
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
Software IncludedIntelligent Power Software Suite
Sustainability Information
ENERGY STARYes
