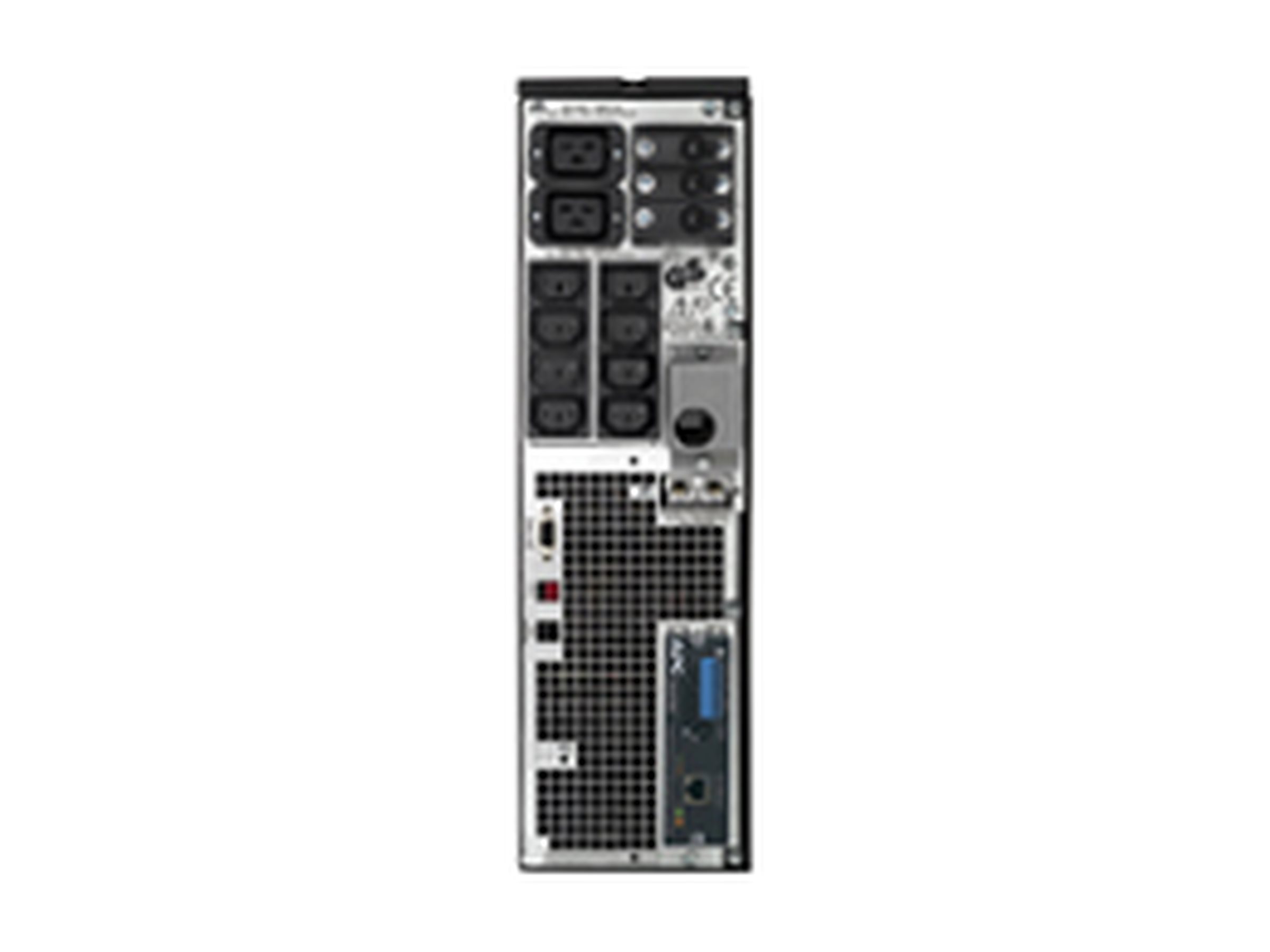

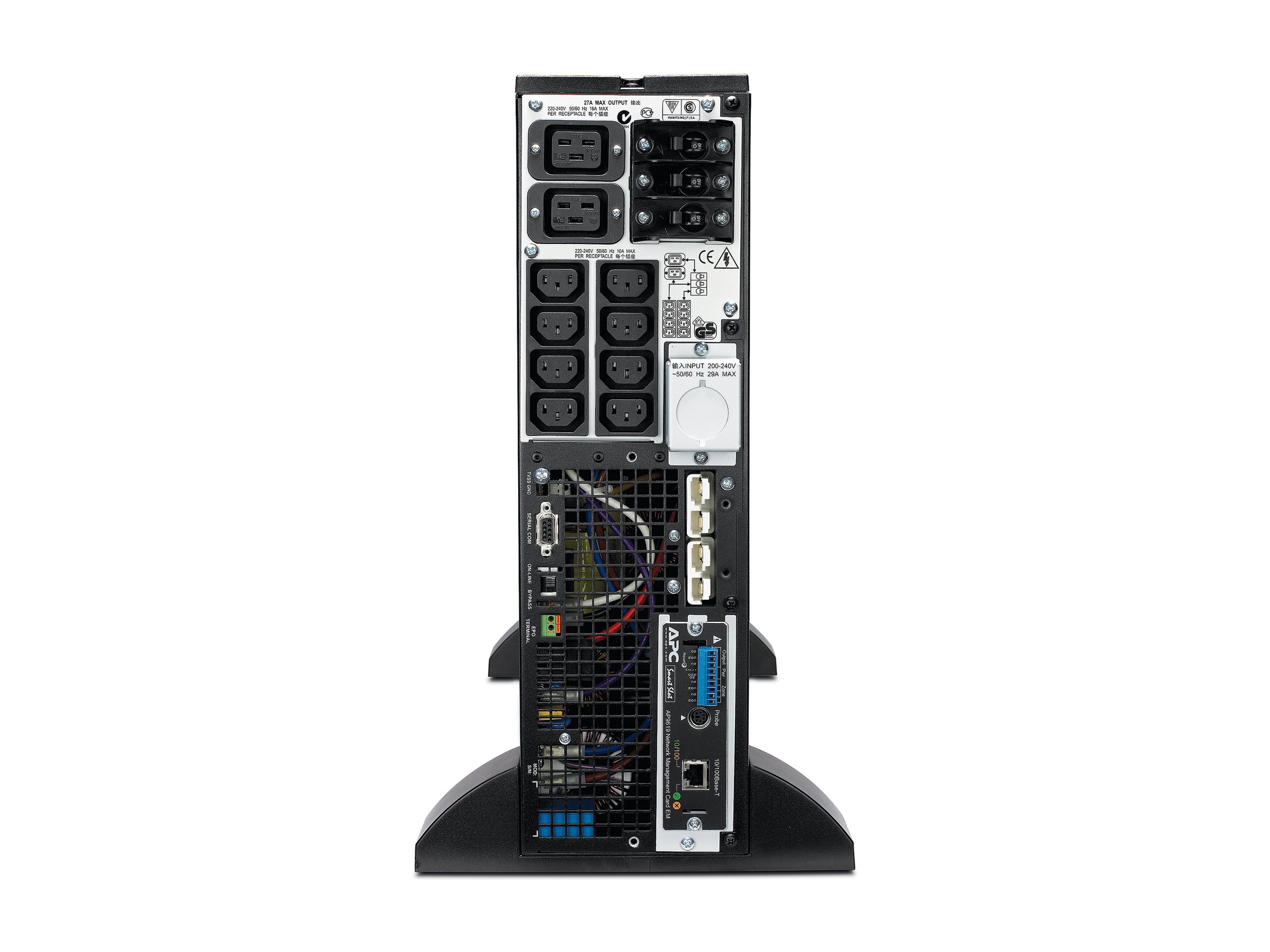

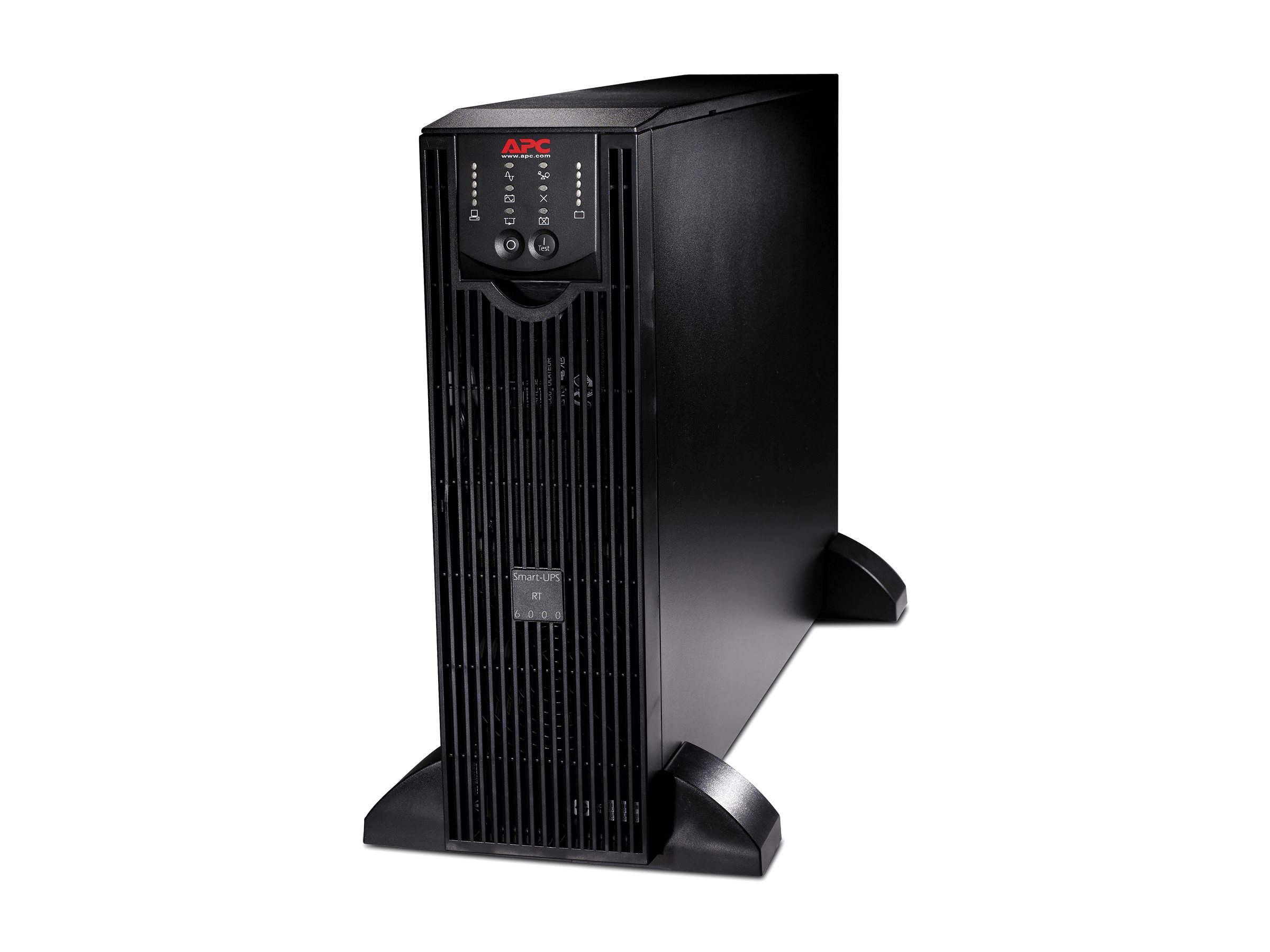

APC Smart-UPS RT 6000VA 230V


MSRP€5,125.00
€4,643.00
APC Smart-UPS RT 6000VA 230V

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
APC Smart-UPS RT 6000VA 230V
  Additional Details
Price: €4,643.00
MSRP: €5,125.00
Mfr Part #: SURT6000XLI
SHI Part #: 16350153
Category: Uninterruptible power supplies
UNSPSC: 39121011
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 2 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
MSRP €40.00 €33.00
APC - Serial cable - RJ-45 (M) to DB-9 (F)
  • 4.57 m
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
€35.00
APC Simple Signaling
  • Serial cable
  • for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW
€150.00

Control/Interface Boards

APC KVM Console Extender
  • KVM extender
  • TAA Compliant
  • for P/N: AR3106SP, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX750C, SMX750CNC, SRT5KRMXLW-TW
MSRP €489.00 €329.00
APC SmartSlot Triple Chassis
  • System bus extender
  • for P/N: G3H10K3IM6X710, G3H10K3IM9X710, SRC1KI, SYA8K16PX798, SYA8K16PXRX798, SYA8K8PX798
MSRP €593.00 €383.00
General Information
CategoryUninterruptible power supplies
DescriptionAPC Smart-UPS RT 6000VA 230V
ManufacturerAPC
MSRP€5,125.00
UNSPSC39121011
Main Specifications
Dimensions & Weight / Depth66 cm
Dimensions & Weight / Height43.2 cm
Dimensions & Weight / Weight54.6 kg
Dimensions & Weight / Width13 cm
General / SubcategoryUPS
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management Interface
  • Ethernet 10/100
  • RS-232
Packaged Quantity1
Power Device / Form FactorExternal
Power Device / Output Connector Qty10
Power Device / Power Capacity (VA)6000 VA
Power Device / UPS TechnologyOn-line
Power Device / Voltage RequiredAC 220/230/240 V
Product TypeUPS
Service & Support / Type2-year warranty
Battery
Quantity1
Recharge Time2.5 hours
Run Time (Up To)3.3 min at full load
TechnologyLead acid
Compatibility Information
Designed ForP/N: AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674
Dimensions & Weight
Depth66 cm
Height43.2 cm
Weight54.6 kg
Width13 cm
Dimensions & Weight (Shipping)
Shipping Depth98 cm
Shipping Height34.7 cm
Shipping Weight63.6 kg
Shipping Width60.3 cm
Environmental Parameters
Humidity Range Operating0 - 95%
Max Operating Temperature40 °C
Min Operating Temperature0 °C
Sound Emission55 dBA
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SmartSlot
Interfaces
  • 1 x management (RS-232) - 9 pin D-Sub (DB-9)
  • 1 x management (Ethernet) - RJ-45
General
Battery Enclosure TypePlug-in module
ColorBlack
Device TypeUPS - external
Height (Rack Units)3U
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables Included
  • Power cable 3.1 m
  • Serial cable - external
Compliant StandardsC-Tick, GOST, EN 60950, EN 61000-3-2, UL 1449, VDE, EN55022 Class A, EN 50091-2, EN 50091-1
FeaturesAudible alarm, emergency power off, internal bypass, LED indicators
Networking
Remote Management InterfaceEthernet 10/100, RS-232
Remote Management ProtocolSNMP, Telnet, HTTP
Power Device
Circuit ProtectionCircuit breaker
Frequency Provided50/60 Hz
Frequency Required50/60 Hz
Input Connectors1 x hardwire
Input VoltageAC 220/230/240 V
Input Voltage RangeAC 160 - 280 V
Input Voltage Range (Adjustable)AC 100 - 280 V
Output VoltageAC 220/230/240 V ± 3% - 50/60 Hz
Output WaveformSinewave
Power Capacity6000 VA
Power Output Connectors Details
  • 8 x power IEC 60320 C13
  • 2 x power IEC 60320 C19
Surge Energy Rating480 Joules
Surge SuppressionYes
UPS TechnologyOn-line
Software / System Requirements
Software IncludedDrivers & Utilities
