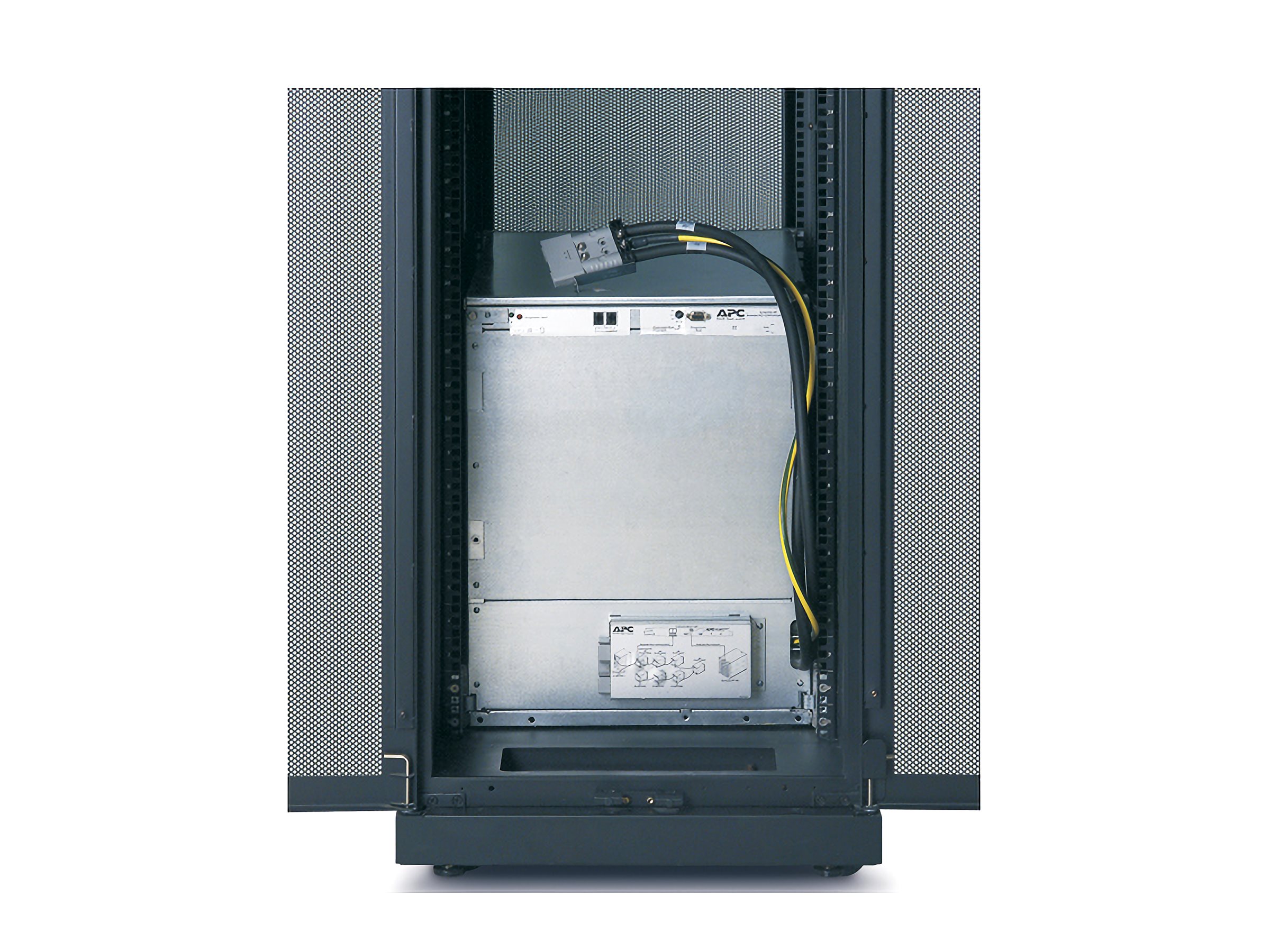

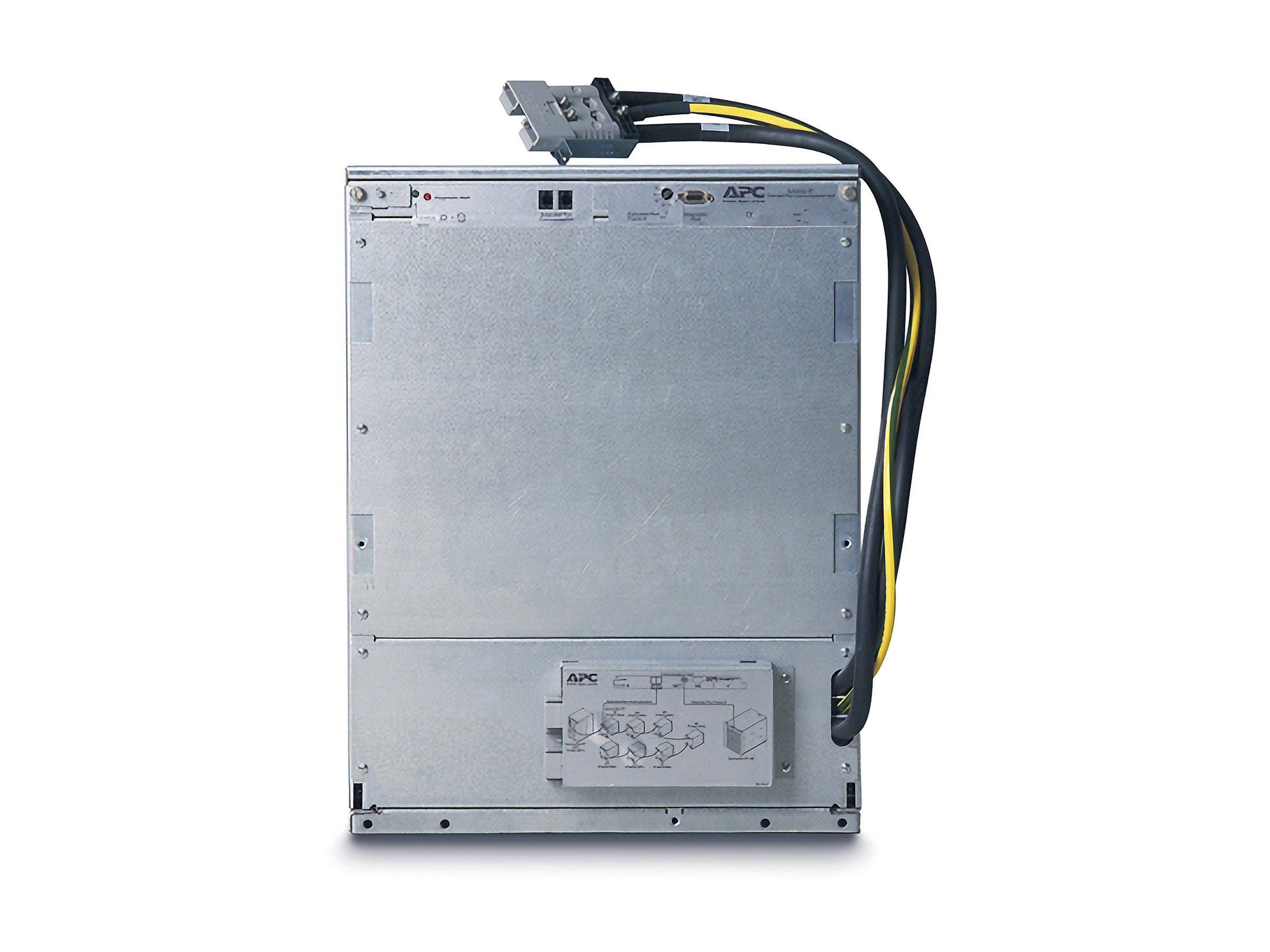

APC Extended Run - Power array cabinet (rack-mountable)
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
APC Extended Run - Power array cabinet (rack-mountable)
- AC 230 V
- 13U
- black
- for P/N: AR3357X674, SYA12K16ICH, SYA12K16IXRCH, SYA16K16IXRCH, SYA8K16ICH, SYAF16KRMICH
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | SYARMXR9B9I |
| SHI Part #: | 15212797 |
| Category: | Chassis |
| UNSPSC: | 43201601 |
| Manufacturer: | APC by Schneider Electric |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Chassis |
| Description | APC Extended Run - Power array cabinet (rack-mountable) - AC 230 V - 13U - black - for P/N: AR3357X674, SYA12K16ICH, SYA12K16IXRCH, SYA16K16IXRCH, SYA8K16ICH, SYAF16KRMICH |
| Manufacturer | APC by Schneider Electric |
| UNSPSC | 43201601 |
| Main Specifications | |
| Dimensions & Weight / Depth | 68.6 cm |
| Dimensions & Weight / Height | 57.2 cm |
| Dimensions & Weight / Weight | 313 kg |
| Dimensions & Weight / Width | 47.2 cm |
| General / Subcategory | Cabinets, enclosures and chassis |
| Header / Brand | APC |
| Miscellaneous / Product Color | Black |
| Packaged Quantity | 1 |
| Power Device / Form Factor | Rack-mountable |
| Power Device / Voltage Required | AC 230 V |
| Product Type | Power array cabinet |
| Service & Support / Type | 2-year warranty |
| Battery | |
| Quantity | 9 (supported) 9 |
| Technology | Lead acid |
| Voltage Provided | 120 V |
| Compatibility Information | |
| Designed For | P/N: AR3357X674, ISXCR1SY16K16P5, ISXT216MD1RI, SYA12K16I, SYA12K16ICH, SYA12K16IXR, SYA12K16IXRCH, SYA12K16P, SYA12K16PXR, SYA12K16RMI, SYA12K16RMICH, SYA12K16RMP, SYA16K16I, SYA16K16ICH, SYA16K16IXR, SYA16K16IXRCH, SYA16K16P, SYA16K16PXR, SYA16K16RMI, SYA16K16RMICH, SYA16K16RMP, SYA4K8I, SYA4K8P, SYA4K8RMI, SYA4K8RMP, SYA8K16I, SYA8K16ICH, SYA8K16IXR, SYA8K16P, SYA8K16PXR, SYA8K16RMI, SYA8K16RMICH, SYA8K16RMP, SYA8K8I, SYA8K8P, SYA8K8RMI, SYA8K8RMP, SYAF16KRMICH |
| Dimensions & Weight | |
| Depth | 68.6 cm |
| Height | 57.2 cm |
| Weight | 313 kg |
| Width | 47.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| General | |
| Battery Enclosure Type | Plug-in module |
| Color | Black |
| Device Type | Power array cabinet - rack-mountable |
| Height (Rack Units) | 13U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | CSA, VCCI, BSMI, EN 60950, UL 1778, VDE, IEC 60950, EN 50091-2, EN 50091-1 |
| Power Device | |
| Input Voltage | AC 230 V |
| Supported Battery Technology | Lead acid |
