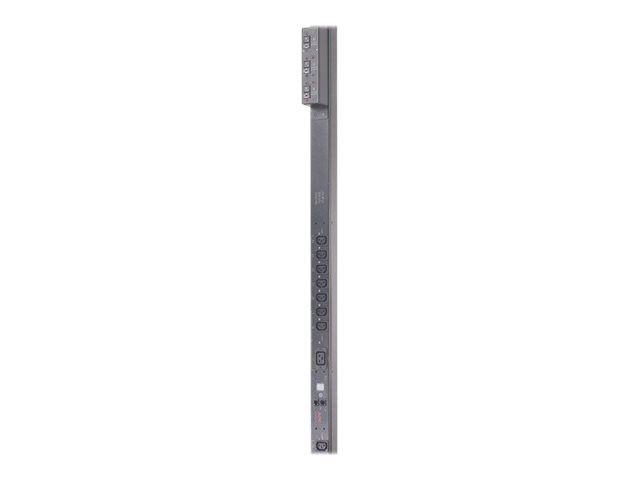

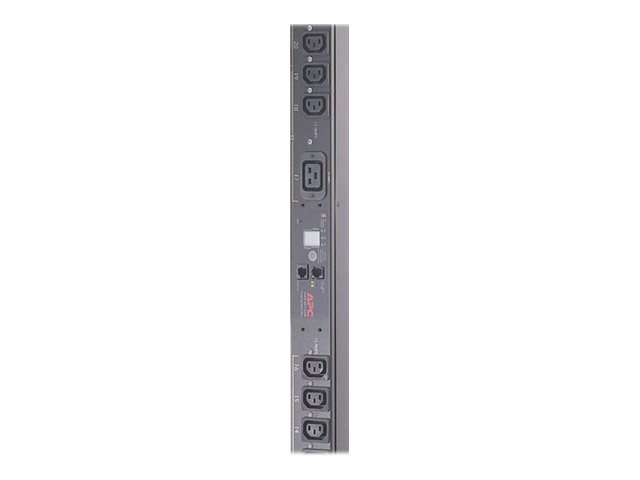

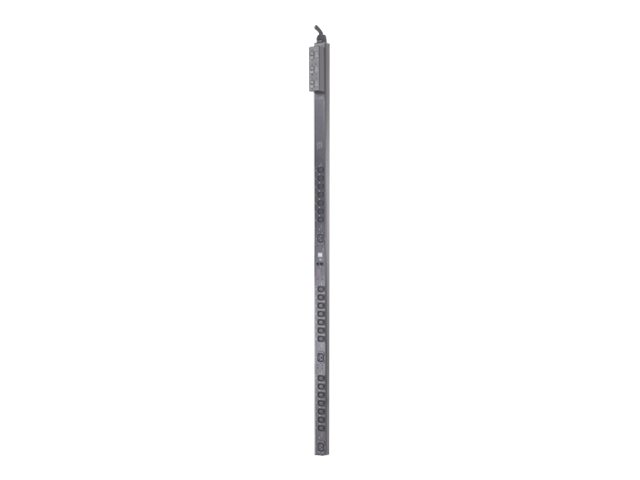

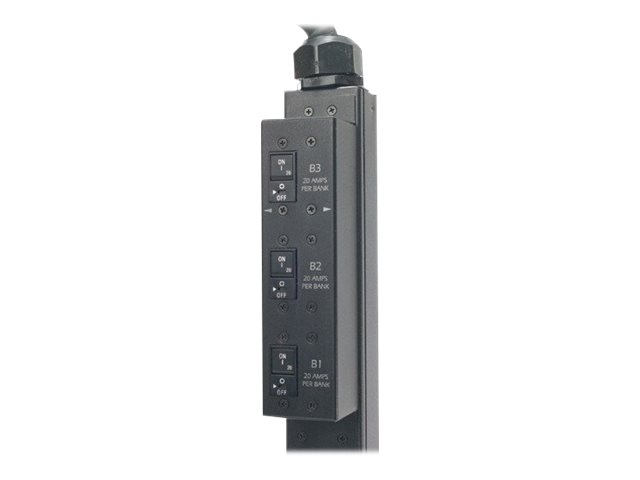

APC Switched Rack PDU Zero U


€1,471.00
APC Switched Rack PDU Zero U

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Power distribution strip (rack-mountable)
  • AC 208 V
  • RS-232
  • input: Hubbell CS8365C
  • output connectors: 24 (IEC 60320 C13, IEC 60320 C19)
APC Switched Rack PDU Zero U
  • Power distribution strip (rack-mountable)
  • AC 208 V
  • RS-232
  • input: Hubbell CS8365C
  • output connectors: 24 (IEC 60320 C13, IEC 60320 C19)
  • 3.05 m cord
  • black
  • for P/N: AR3100
  Additional Details
Price: €1,471.00
Mfr Part #: AP7998
SHI Part #: 15087738
Category: Power distribution units PDUs
UNSPSC: 39121017
Manufacturer: APC
Product Type: Hardware
Product Line: APC by Schneider Electric
General Information
CategoryPower distribution units PDUs
DescriptionAPC Switched Rack PDU Zero U - Power distribution strip (rack-mountable) - AC 208 V - RS-232 - input: Hubbell CS8365C - output connectors: 24 (IEC 60320 C13, IEC 60320 C19) - 3.05 m cord - black - for P/N: AR3100
ManufacturerAPC
UNSPSC39121017
Main Specifications
Dimensions & Weight / Depth8.9 cm
Dimensions & Weight / Height177.8 cm
Dimensions & Weight / Weight9.7 kg
Dimensions & Weight / Width5.6 cm
General / SubcategoryPower distribution devices
Header / BrandAPC
Miscellaneous / Product ColorBlack
Networking / Remote Management InterfaceRS-232
Packaged Quantity1
Power Device / Form FactorRack-mountable
Power Device / Output Connector Qty24
Power Device / Voltage RequiredAC 208 V
Product TypePower distribution strip
Service & Support / Type2-year warranty
Compatibility Information
Designed ForP/N: AR3100
Dimensions & Weight
Depth8.9 cm
Height177.8 cm
Weight9.7 kg
Width5.6 cm
Environmental Parameters
Humidity Range Operating5 - 95%
Max Operating Temperature45 °C
Min Operating Temperature-5 °C
General
ColorBlack
Cord Length3.05 m
Device TypePower distribution strip - rack-mountable
Manufacturer Warranty
Service & SupportLimited warranty - 2 years
Miscellaneous
Cables IncludedPower cable - integrated - 3.05 m
Compliant StandardsFCC Class A certified, UL, VCCI, cUL, ICES-003
FeaturesAudible alarm, LED display
Rack Mounting KitIncluded
Networking
Remote Management InterfaceRS-232
Power Device
Frequency Required50/60 Hz
Input Connectors1 x Hubbell CS8365C
Input VoltageAC 208 V
Max Electric Current35 A
Output VoltageAC 208 V
Power Output Connectors Details
  • 3 x power IEC 60320 C19
  • 21 x power IEC 60320 C13
