Hardware Power Management UPS-Battery Backups

UPS-Battery Backups

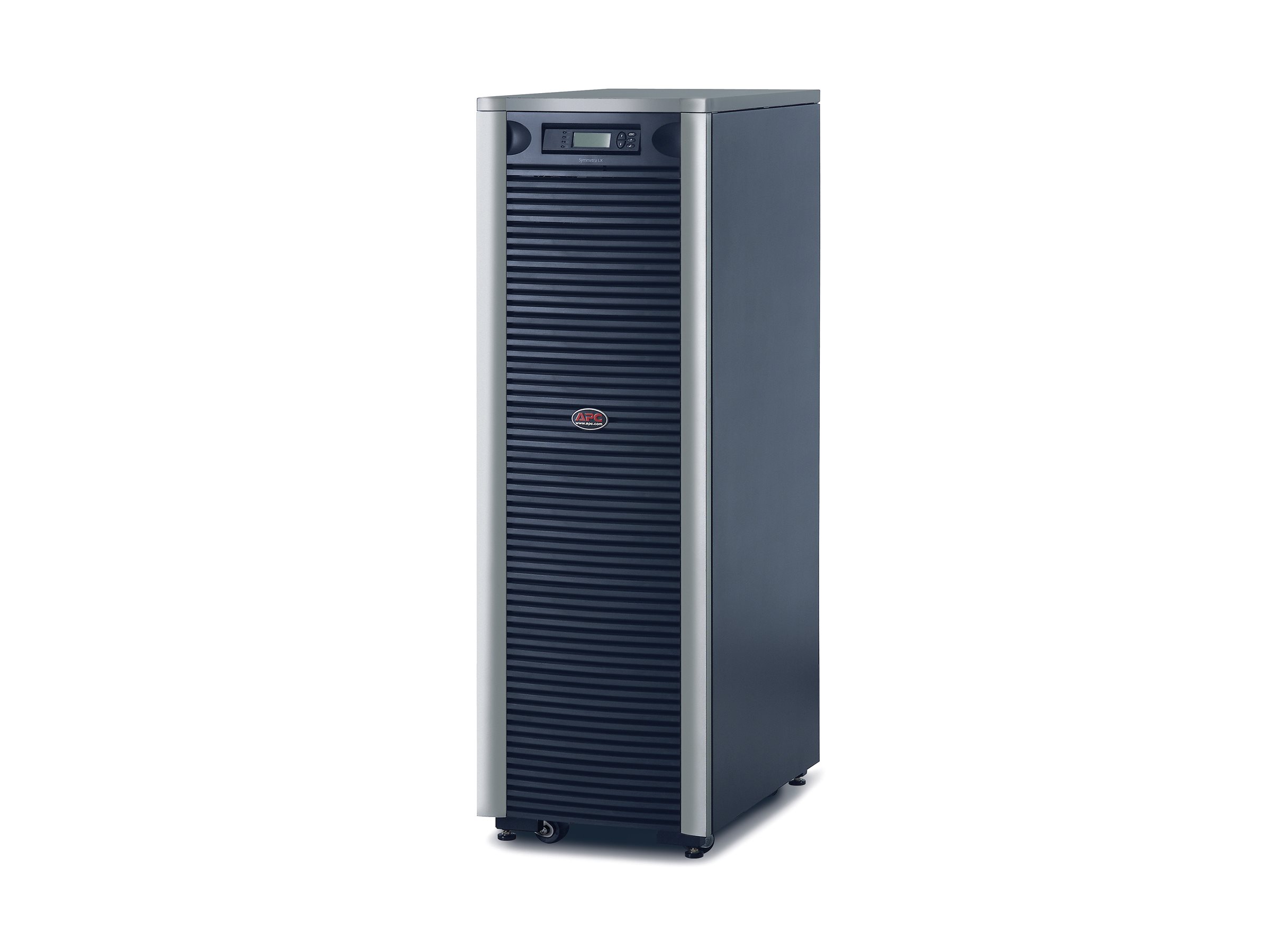

SYMMETRA LX 8KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V

€22,760.00

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

SYMMETRA LX 8KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V

Additional Details
Price:	€22,760.00
Mfr Part #:	SYA8K16IXR
SHI Part #:	14690301
Category:	Uninterruptible power supplies
UNSPSC:	39121011
Manufacturer:	APC by Schneider Electric
Product Type:	Hardware

Audio/Video Cables

APC - Serial cable - RJ-45 (M) to DB-9 (F)

2 m
for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW

€33.00

APC - Serial cable - RJ-45 (M) to DB-9 (F)

4.57 m
for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW

MSRP €34.99

€34.00

APC Simple Signaling

Serial cable
for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW

€149.00

Control/Interface Boards

APC Isolate UPS Extension Cable

Serial port extender
up to 100 m
for P/N: SRV1KA-TW, SRV1KI-TW, SRV2KA-TW, SRV2KI-TW, SRV3KA-TW, SRV3KI-TW, SRV6KI-TW

€261.00

APC SmartSlot Triple Chassis

System bus extender
for P/N: G3H10K3IM6X710, G3H10K3IM9X710, SRC1KI, SYA8K16PX798, SYA8K16PXRX798, SYA8K8PX798

€383.00

General Information
Category	Uninterruptible power supplies
Description	SYMMETRA LX 8KVA SCALABLE TO16KVA N+1 EXT RUN TWR 220/230/240V
Manufacturer	APC by Schneider Electric
UNSPSC	39121011
Main Specifications
Dimensions & Weight / Depth	73 cm
Dimensions & Weight / Height	152 cm
Dimensions & Weight / Weight	474 kg
Dimensions & Weight / Width	48 cm
General / Subcategory	UPS
Header / Brand	APC
Miscellaneous / Product Color	Black Silver
Networking / Remote Management Interface	Ethernet 10/100
Packaged Quantity	1
Power Device / Form Factor	External
Power Device / Output Connector Qty	1
Power Device / Power Capacity (VA)	8000 VA
Power Device / Voltage Required	AC 220/230/240/380/400/415 V
Product Type	Power array
Service & Support / Type	2-year warranty
Battery
Quantity	9 (installed) / 13 (supported)
Run Time (Up To)	57.4 min at full load
Technology	Lead acid
Dimensions & Weight
Depth	73 cm
Height	152 cm
Weight	474 kg
Width	48 cm
Environmental Parameters
Humidity Range Operating	0 - 95%
Max Operating Temperature	40 °C
Min Operating Temperature	0 °C
Expansion / Connectivity
Expansion Slots	1 (free) x SmartSlot
Interfaces	1 x management (RS-232) - 9 pin D-Sub (DB-9) 1 x management (Ethernet) - RJ-45
General
Color	Black, silver
Device Type	Power array - external
Manufacturer Warranty
Service & Support	Limited warranty - 2 years
Miscellaneous
Compliant Standards	C-Tick, GOST, EN 60950, VDE, IEC 60950, EN55024, EN55022 Class A, EN 50091-2

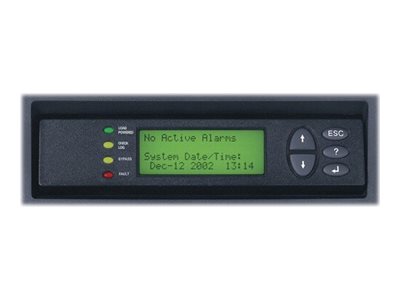

Features	Emergency power off, LCD display, audible alarm
Networking
Remote Management Interface	Ethernet 10/100
Remote Management Protocol	SNMP
Power Device
Frequency Provided	47 - 63 Hz
Frequency Required	45 - 65 Hz
Input Connectors	2 x hardwire
Input Voltage	AC 220/230/240/380/400/415 V
Input Voltage Range	AC 155/276 - 290/480 V
Output Voltage	AC 220/230/240 V ± 5% - 47 - 63 Hz
Output Waveform	Sinewave
Power Capacity	8000 VA
Power Output Connectors Details	1 x hardwire
Supported Battery Technology	Lead acid
